Hub-and-Spoke Network with Centralized Egress and Traffic Inspection use AWS Transit Gateway and AWS Firewall

aws logo

Try AWS Native preview for resources not in the classic version.

AWS Classic v6.44.0 published on Monday, Jul 8, 2024 by Pulumi

    View Code Deploy this example with Pulumi

    This example creates a hub and spoke network in AWS with centralized egress and (optional) traffic inspection using AWS VPC, AWS Transit Gateway, and AWS Firewall for traffic inspection. The code creates 2 spoke networks, but additional networks can be added quickly added by modifying the code (see “Additional Options” below).

    About the Architecture

    A hub-and-spoke network is a common architecture for creating a network topology that provides isolation and security for your workloads. The hub-and-spoke architecture you’ll be creating on AWS has three main components: an inspection VPC, AWS Transit Gateway, and a series of spoke VPCs.

    • The inspection VPC provides centralized egress. It is the only VPC that has a route to the internet, so all other VPCs in the architecture must route their traffic through the inspection VPC. The inspection VPC has optional traffic inspection capabilities.
    • Network connectivity between VPCs is accomplished via AWS Transit Gateway. The Transit Gateway maintains a central routing table that is used to route traffic from the spoke VPCs to the internet. We also need to maintain routes so that return traffic from the internet can be routed back to the correct spoke VPC.
    • The spoke VPCs are where we run our application workloads. They are isolated from each other and cannot communicate with each other unless we explicitly allow a network path. They will be able to communicate with the internet by default, but only through the inspection VPC’s NAT gateways.

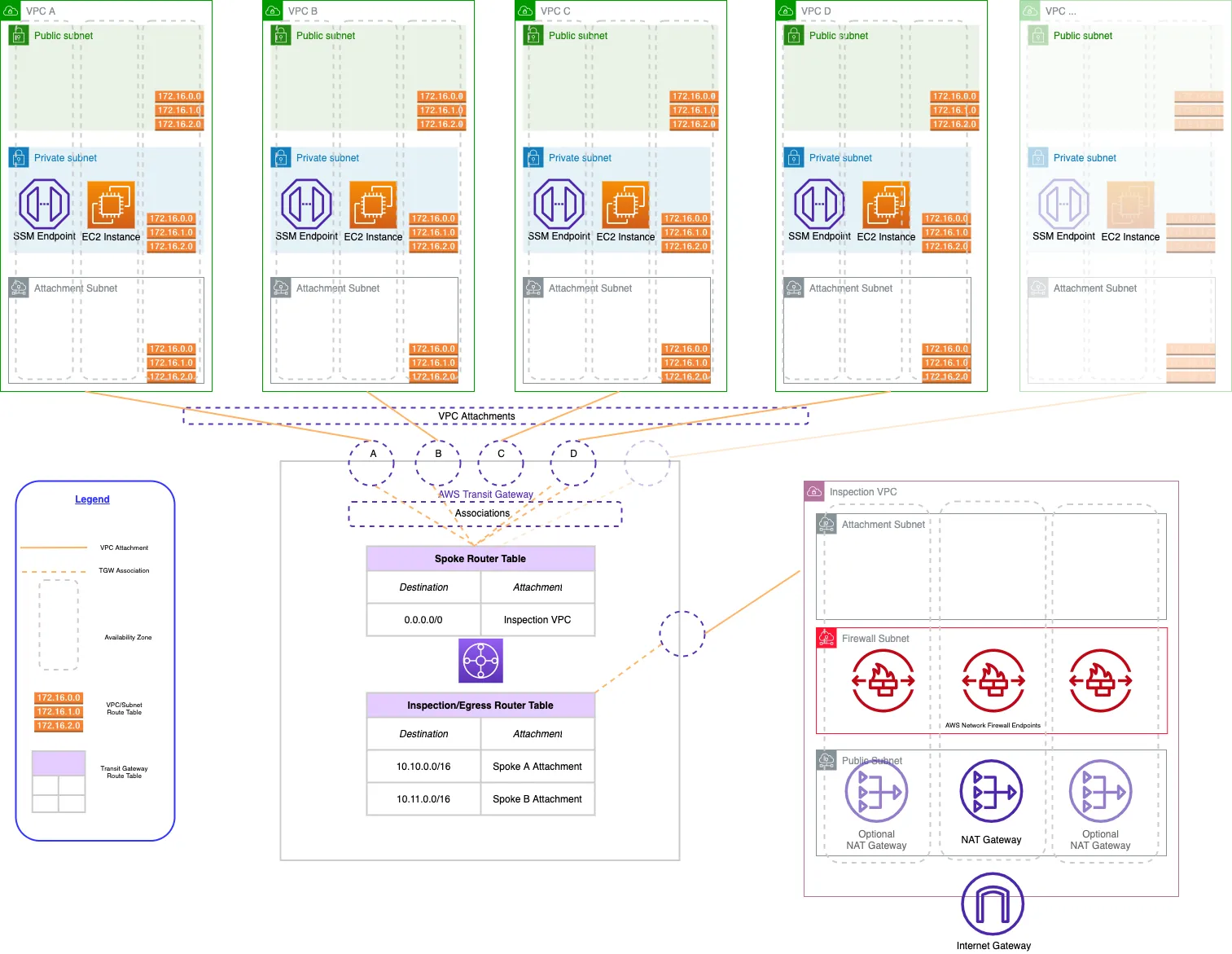

    Diagram of a hub and spoke network architecture with centralized egress and traffic inspection

    Prerequisites

    1. Install Pulumi
    2. Configure AWS Credentials
    3. Install Python

    Deploy The App

    Step 1: Initialize the Project

    For Pulumi examples, we typically start by creating a directory and changing into it. Then, we create a new Pulumi project from a template. For example, azure-javascript.

    1. Install packages:

      python3 -m venv venv
      venv/bin/pip install -r requirements.txt

    2. Create a new Pulumi stack:

      pulumi stack init

    3. Configure the AWS region to deploy into:

      pulumi config set aws:region us-east-2

    4. Deploy the Pulumi stack:

      pulumi up


    Step 2: Test the Network

    1. Take note of the nat-gateway-eip output from the stack. This is the Elastic IP address of the NAT gateway in the inspection VPC.

    2. Log into the AWS Console in the region in which you deployed the project.

    3. Navigate to the EC2 service home page.

    4. Select one of the spoke workload instances and under “Actions”, click “Connect”.

    5. Under the Session Manager section, click “Connect”. This will create an terminal session to the instance.

    6. Run the following command. The resulting output should be identical to the nat-gateway-eip output from the stack. This means that your EC2 instance is able to reach the internet through the NAT gateway in the inspection VPC.

      curl -s http://icanhazip.com


    You can comment out the SpokeWorkload components after testing as it is not required for the network to function.

    Additional Options

    There are several modifications to the code that can be made:

    1. To enable traffic inspection, set the create-firewall config variable to true.

      pulumi config set create-firewall true


      By default, the firewall rules will only allow traffic to amazon.com. You can modify the rules by editing the contents of firewall.py.

    2. To add additional spoke networks, initiate additional instances of the SpokeVpc component resource in __main__.py. Be sure that each spoke VPC has a CIDR block that does not overlap with any other spoke VPCs.

    Clean Up

    Once you’re finished experimenting, you can destroy your stack and remove it to avoid incurring any additional cost:

    pulumi destroy
    pulumi stack rm


    Troubleshooting

    You may encounter a condition where the security group fails to delete. This may be due to incomplete deletion of VPC endpoints. To fix this condition, perform the following in the AWS console:

    1. Delete all VPC endpoints in the VPC that contains the security group that is failing to delete. Wait for the endpoints to finish deleting.
    2. Once the VPC endpoints are deleted, attempt to delete the security group in the console. If any ENIs are still using the security group, wait a few seconds and try again. ENIs created for VPC endpoints may take an additional minute or two to be deleted after deleting the associated VPC endpoint.
    3. Run pulumi destroy again.

    Summary

    In this tutorial, you created a hub and spoke network with centralized egress and (optional) traffic inspection. Now you can deploy workloads into the VPCs and enjoy the benefits of this architecture.
