Container Service on Azure

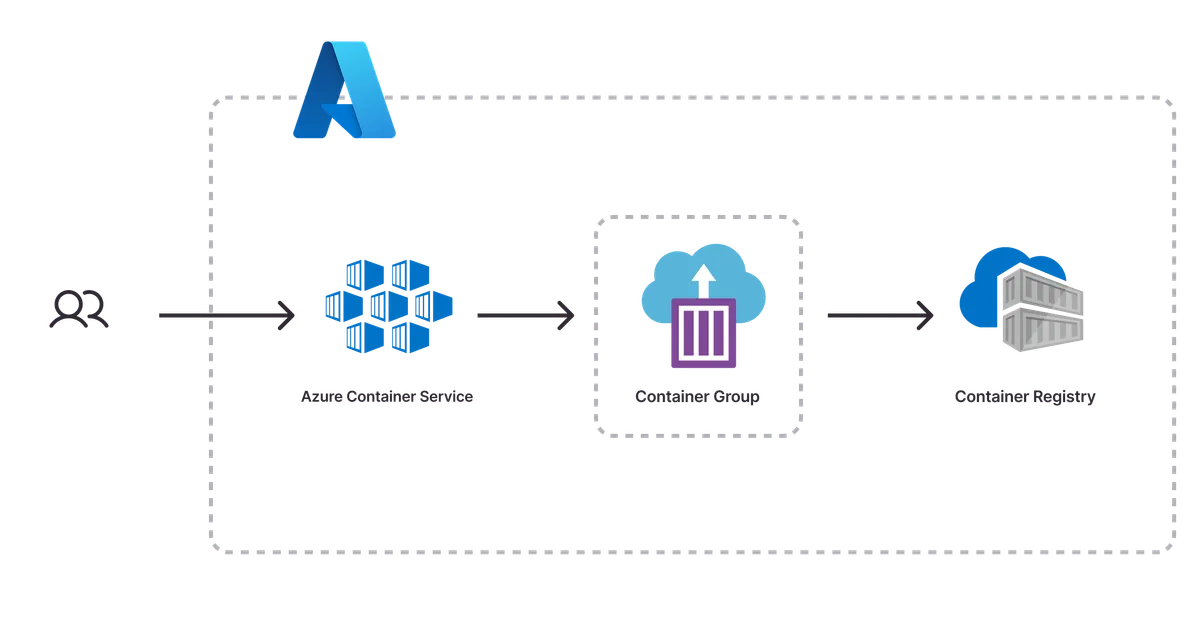

The Azure Container Service template scaffolds a Pulumi project that deploys a containerized service to Azure. The architecture includes an Azure Container Registry for the container image and Azure Container Instances (ACI) for serverless container execution. The template ships with placeholder app content so the project deploys end to end out of the box.
Using this template#
To use this template to deploy your own container service, make sure you’ve installed Pulumi and configured your Azure credentials, then create a new project using the template in the language of your choice:
TypeScript
Python
Go
C#
HCLmkdir my-container-service && cd my-container-servicepulumi new container-azure-typescriptAlternatively, you can create and configure a new project with this template (container-azure-typescript) in Pulumi Cloud.
mkdir my-container-service && cd my-container-servicepulumi new container-azure-pythonAlternatively, you can create and configure a new project with this template (container-azure-python) in Pulumi Cloud.
mkdir my-container-service && cd my-container-servicepulumi new container-azure-goAlternatively, you can create and configure a new project with this template (container-azure-go) in Pulumi Cloud.
mkdir my-container-service && cd my-container-servicepulumi new container-azure-csharpAlternatively, you can create and configure a new project with this template (container-azure-csharp) in Pulumi Cloud.
mkdir my-container-service && cd my-container-servicepulumi new container-azure-hclAlternatively, you can create and configure a new project with this template (container-azure-hcl) in Pulumi Cloud.
Follow the prompts to complete the new-project wizard. When it’s done, you’ll have a complete Pulumi project that’s ready to deploy and configured with the most common settings. Feel free to inspect the code in index.tsindex.js__main__.pymain.goProgram.csProgram.fsProgram.vbApp.javaPulumi.yaml for a closer look.
Deploying the project#
The template requires no additional configuration. Once the new project is created, you can deploy it immediately with pulumi up:
pulumi upWhen the deployment completes, Pulumi exports the following stack output values:
- hostname
The hostname of the container group.
- ip
The public IP address of the container group.
- url
The HTTP URL of the container group.
Output values like these are useful in many ways, most commonly as inputs for other stacks or related cloud resources. The computed url, for example, can be used from the command line to open the newly deployed application in your favorite web browser:
open $(pulumi stack output url)Customizing the project#
Projects created with the Container Service template expose the following configuration settings:
- appPath
The path to the folder containing the application and Dockerfile. Defaults to
app, which contains a “Hello world” example.- containerPort
The port to expose on the container. Defaults to
80.- cpu
The number of CPU cores to allocate on the container. Defaults to
1.- memory
The amount of memory, in GB, to allocate on the container. Defaults to
2.- imageName
The name of the container image to be published to Azure Container Registry. Defaults to
my-app.- imageTag
The tag applied to published container images. Defaults to
latest.
- appPath
The path to the folder containing the application and Dockerfile. Defaults to
app, which contains a “Hello world” example.- containerPort
The port to expose on the container. Defaults to
80.- cpu
The number of CPU cores to allocate on the container. Defaults to
1.- memory
The amount of memory, in GB, to allocate on the container. Defaults to
2.- imageName
The name of the container image to be published to Azure Container Registry. Defaults to
my-app.- imageTag
The tag applied to published container images. Defaults to
latest.
- appPath
The path to the folder containing the application and Dockerfile. Defaults to
app, which contains a “Hello world” example.- containerPort
The port to expose on the container. Defaults to
80.- cpu
The number of CPU cores to allocate on the container. Defaults to
1.- memory
The amount of memory, in GB, to allocate on the container. Defaults to
2.- imageName
The name of the container image to be published to Azure Container Registry. Defaults to
my-app.- imageTag
The tag applied to published container images. Defaults to
latest.
- appPath
The path to the folder containing the application and Dockerfile. Defaults to
app, which contains a “Hello world” example.- containerPort
The port to expose on the container. Defaults to
80.- cpu
The number of CPU cores to allocate on the container. Defaults to
1.- memory
The amount of memory, in GB, to allocate on the container. Defaults to
2.- imageName
The name of the container image to be published to Azure Container Registry. Defaults to
my-app.- imageTag
The tag applied to published container images. Defaults to
latest.
- app_path
The path to the folder containing the application and Dockerfile. Defaults to
./app, which contains a “Hello world” example.- image_name
The name of the container image to be published to Azure Container Registry. Defaults to
my-app.- image_tag
The tag applied to published container images. Defaults to
latest.- container_port
The port to expose on the container. Defaults to
80.- cpu
The number of CPU cores to allocate on the container. Defaults to
1.- memory
The amount of memory, in GB, to allocate on the container. Defaults to
2.
All of these settings are optional and may be adjusted either by editing the stack configuration file directly (by default, Pulumi.dev.yaml) or by changing their values with pulumi config set:
pulumi config set containerPort 8080pulumi uppulumi config set containerPort 8080pulumi uppulumi config set containerPort 8080pulumi uppulumi config set containerPort 8080pulumi uppulumi config set container_port 8080pulumi upCleaning up#
You can cleanly destroy the stack and all of its infrastructure with pulumi destroy:
pulumi destroyLearn more#
