Configuring OpenID Connect for Elastic Kubernetes Service (EKS)

Prerequisites

You must be an admin of your Pulumi organization.
You must have a EKS cluster.
You must associate the EKS cluster with an OIDC provider.

Please note that this guide provides step-by-step instructions based on the official provider documentation which is subject to change. For the most current and precise information, always refer to the Assign IAM roles to Kubernetes service accounts.

Create and register an IAM role with a service account

Create an IAM Role for Service Accounts

Define a trust relationship between the IAM role and the OIDC provider for your EKS cluster. Here’s an example trust policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::<AWS_ACCOUNT_ID>:oidc-provider/<OIDC_PROVIDER_URL>"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "<OIDC_PROVIDER_URL>:sub": "system:serviceaccount:<namespace>:<service-account-name>"
        }
      }
    }
  ]
}

Replace <AWS_ACCOUNT_ID>, <OIDC_PROVIDER_URL>, <namespace>, and <service-account-name> with your values.

Create the IAM role using this trust policy and attach necessary permissions for your workload.

Associate the IAM Role with a Kubernetes Service Account.

Create a Kubernetes service account annotated with the IAM role ARN:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: pulumi-service-account
  namespace: default
  annotations:
    eks.amazonaws.com/role-arn: "arn:aws:iam::<AWS_ACCOUNT_ID>:role/<IAM_ROLE_NAME>"

Replace <AWS_ACCOUNT_ID> and <IAM_ROLE_NAME> with the appropriate values.

Apply the service account to your Kubernetes cluster:
```
kubectl apply -f pulumi-service-account.yaml
```

Register the OIDC issuer

Navigate to OIDC Issuers under your Organization’s Settings and click on Register a new issuer.
Lookup your clusters OIDC Issuer url:
```
aws eks describe-cluster --name <cluster-name> --query "cluster.identity.oidc.issuer" --output text
```
This command returns the issuer URL, such as https://oidc.eks.us-west-2.amazonaws.com/id/EXAMPLEDOCID.

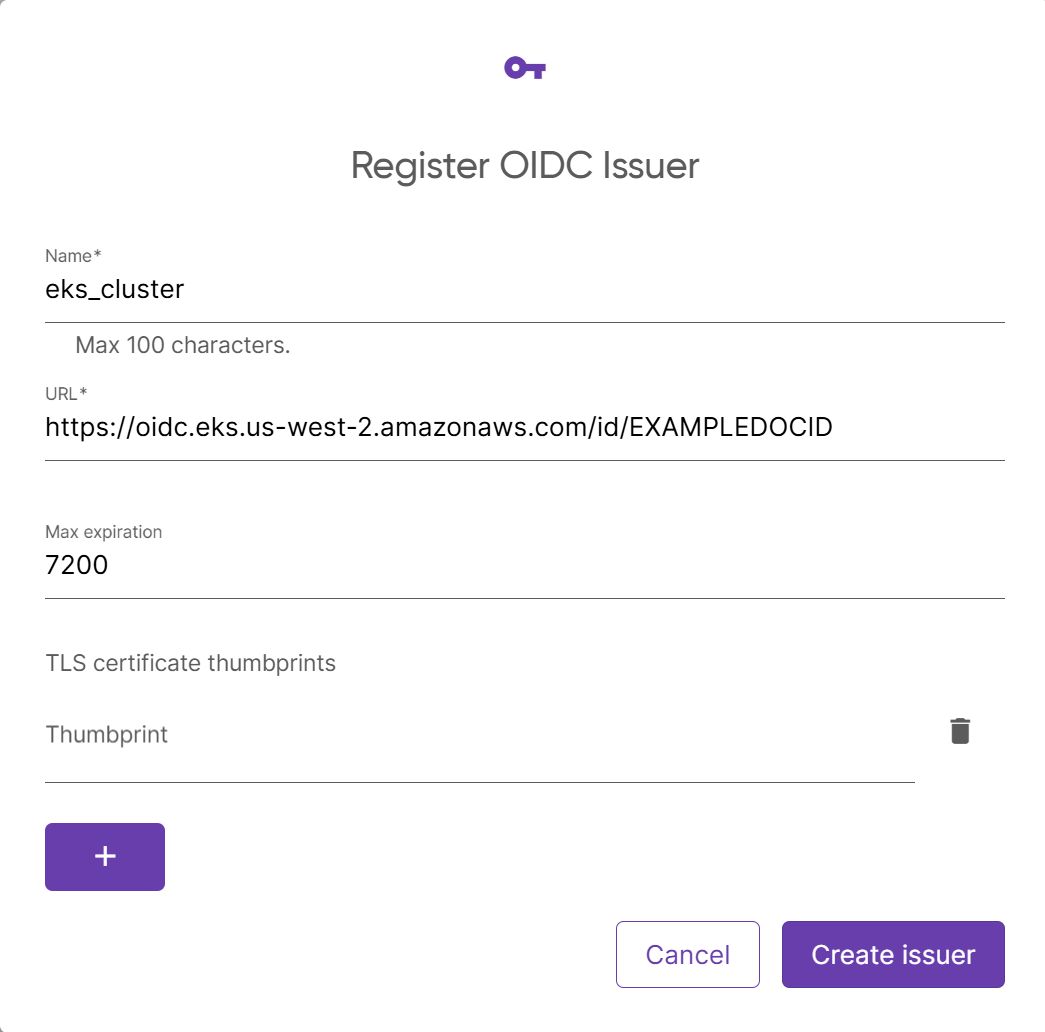

Name the issuer, set a max expiration (in seconds), and add the issuer url:
Submit the form

Configure the Authorization Policies

Click on the issuer name.
Change the policy decision to Allow.
Change the token type to Personal. See this page for other token types.
The user login should default to your login, but change if using a different login.

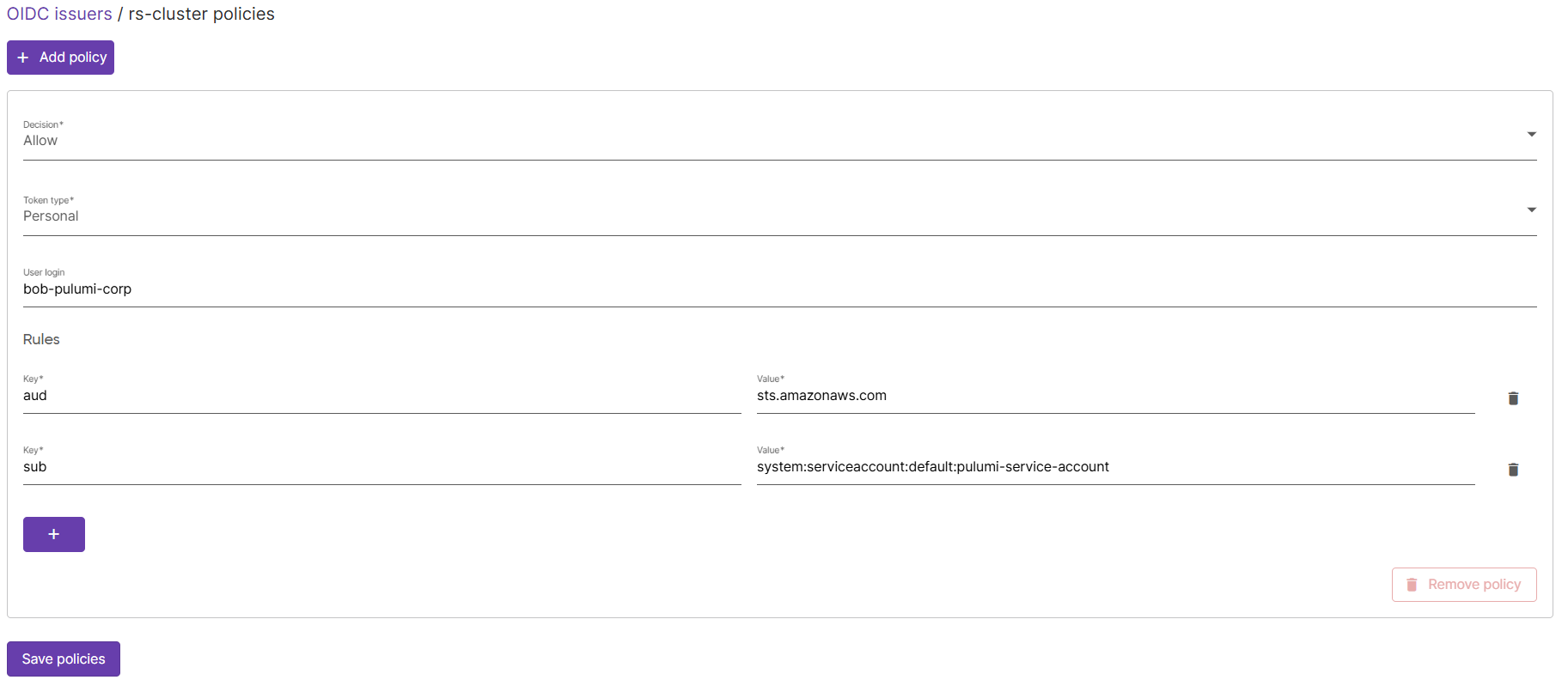

Add a new rule and configure it to verify namespace and the service name:
Click on Save policies

There are other attributes you can use to fine tune your policy, such as:

   "kubernetes.io": {
    "namespace": "default",
    "node": {
      "name": "ip-10-10-4-26.us-west-2.compute.internal",
      "uid": "ffc5761d-939e-4256-8f82-a847d532a0fa"
    },
    "pod": {
      "name": "busyboxplus",
      "uid": "3227b947-e0c8-4bd2-95b9-a0d8f69b3110"
    },
    "serviceaccount": {
      "name": "pulumi-service-account",
      "uid": "bece172b-0180-48d5-b762-e3c4501de4e2"
    }
  }

For example to reference the pod name, you would use "kubernetes.io".pod.name as the key path and the pod name (e.g. busyboxplus in this case) as the value.

Sample

// Pulumi program to run a bash script in a Kubernetes pod,
// mount a service account token with an appropriate audience,
// exchange the token for an ordinary Pulumi access token,
// then run `pulumi whoami`.

import * as kubernetes from "@pulumi/kubernetes";

const tokenParams = {
    "audience": "urn:pulumi:org:ORG_NAME",
    "token_type": "urn:pulumi:token-type:access_token:personal",
    "expiration": 2 * 60 * 60,
    "scope": "user:USER_LOGIN"
}

const script = new kubernetes.core.v1.ConfigMap("script", {
    data: {
        "entrypoint.sh": `#!/bin/bash
apt -qq install -y jq

# This is the location of the EKS id token
EKS_ID_TOKEN=$(cat /var/run/secrets/eks.amazonaws.com/serviceaccount/token)

echo "OIDC Token:"
echo $EKS_ID_TOKEN
export PULUMI_ACCESS_TOKEN=$(curl -sS -X POST  \
    -H 'Content-Type: application/x-www-form-urlencoded' \
    -d 'audience=${tokenParams.audience}' \
    -d 'grant_type=urn:ietf:params:oauth:grant-type:token-exchange' \
    -d 'subject_token_type=urn:ietf:params:oauth:token-type:id_token' \
    -d 'requested_token_type=${tokenParams.token_type}' \
    -d 'expiration=${tokenParams.expiration}' \
    -d 'scope=${tokenParams.scope}' \
    -d "subject_token=$EKS_ID_TOKEN" \
    https://api.pulumi.com/api/oauth/token | jq -r '.access_token')
echo "Access Token:"
echo $PULUMI_ACCESS_TOKEN
pulumi whoami
`
    }
});

const job = new kubernetes.batch.v1.Job("runner", {
    metadata: {
    },
    spec: {
        template: {
            spec: {
                serviceAccountName: "pulumi-service-account"
                containers: [{
                    name: "runner",
                    image: "pulumi/pulumi:latest",
                    command: ["/bin/entrypoint.sh"],
                    volumeMounts: [
                        {
                            name: "script",
                            mountPath: "/bin/entrypoint.sh",
                            readOnly: true,
                            subPath: "entrypoint.sh",
                        },
                    ],
                }],
                restartPolicy: "Never",
                volumes: [
                    {
                        name: "script",
                        configMap: {
                            defaultMode: 0o700,
                            name: script.metadata.name,
                        },
                    },
                ],
            },
        },
        backoffLimit: 0,
    },
});

export const jobName = job.metadata.name;
