SCIM: Configuring Okta

    This document outlines the steps required to help you configure automatic provisioning/deprovisioning of your users and groups in Pulumi using SCIM 2.0.

    Please note that some advanced SCIM features aren’t supported yet. For more information, see Known Limitations.

    Prerequisites

    • Your organization must already be configured to use SAML SSO with Pulumi.
    • You must be an admin of your Pulumi organization.
    • (Optional, but highly recommended) You should have more than one admin for your Pulumi organization.

    Enabling SCIM For Your Okta Org

    In order to configure SCIM for your Okta organization, you may need to email support@okta.com and request that they enable SCIM_PROVISIONING for the organization.

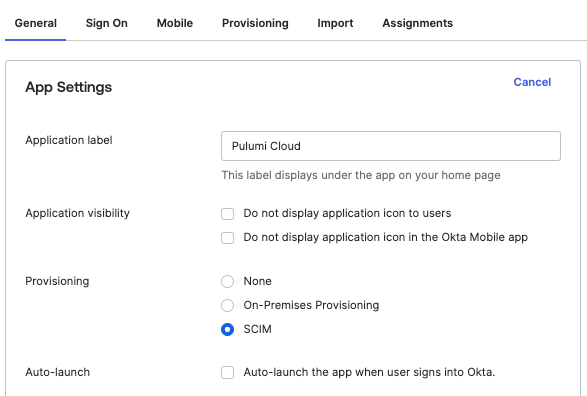

    Once the feature is enabled, navigate to the Pulumi application configured in your Okta org. Under the General tab, in the App Settings dialog box, locate the Provisioning section and select SCIM. Click Save to save your changes and close the App Settings dialog box.

    Okta Enabling SCIM

    For more information on how to enable SCIM provisioning in Okta, see How to Enable SCIM Provisioning in Custom App in the Okta documentation.

    Changing the SAML SSO Settings For SCIM

    Depending on how you configured the application for SAML, you may need to adjust some of the attributes sent by Okta in SAML SSO requests. To make the changes, navigate to the SAML Settings section on the General tab, click Edit, and make the following changes:

    1. Click Next on the first step.

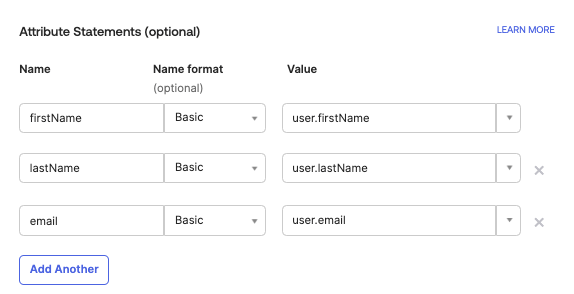

    2. In the Attribute Statements section, click Add Another and set the Name of the property to email and the value to be source from user.email. The ATTRIBUTE STATEMENTS should now be as follows:

      NameName FormatValue
      firstNameBasicuser.firstName
      lastNameBasicuser.lastName
      emailBasicuser.email
    3. Click Next then click Finish.

    Okta SCIM Attributes

    Configuring the SCIM Connector

    To configure the SCIM connector, click the Provisioning tab, and then select the Integration option in the left nav. Click Edit. Fill out the form as follows:

    1. SCIM connector base URL: https://api.pulumi.com/scim/v2/<orgName>, where <orgName> must be replaced with your organization’s login name (not display name). If you do not know this, navigate to your SAML settings and look at the SSO URL. It will have your organization’s login name in the URL.
    2. Supported provisioning actions: Check Push New Users and Push Profile Updates.
    If you also want to support pushing existing Okta groups, the steps in Setting up Group Provisioning describe how to set that up.
    1. Unique identifier field for users: Set to userName.

    2. Authentication Mode: HTTP Header

    3. For the HTTP Header, you will use a token from the Pulumi Cloud.

      To generate a token, navigate to your org in the Pulumi Cloud, click on the Settings tab, and then click Access Management. Scroll down to the SCIM section and generate a new token if you have never generated one for your org, or regenerate it if you have already done so in the past.

    Once you generate the token, save it securely. Neither the Pulumi Cloud nor Pulumi support can retrieve a token once it’s been initially generated. If you lose and need the SCIM token again, you’ll have to generate a new token, invalidating any previous tokens for your Pulumi organization.
    1. Paste the token from the Pulumi Cloud into the Okta Authorization field under the HTTP Header section.

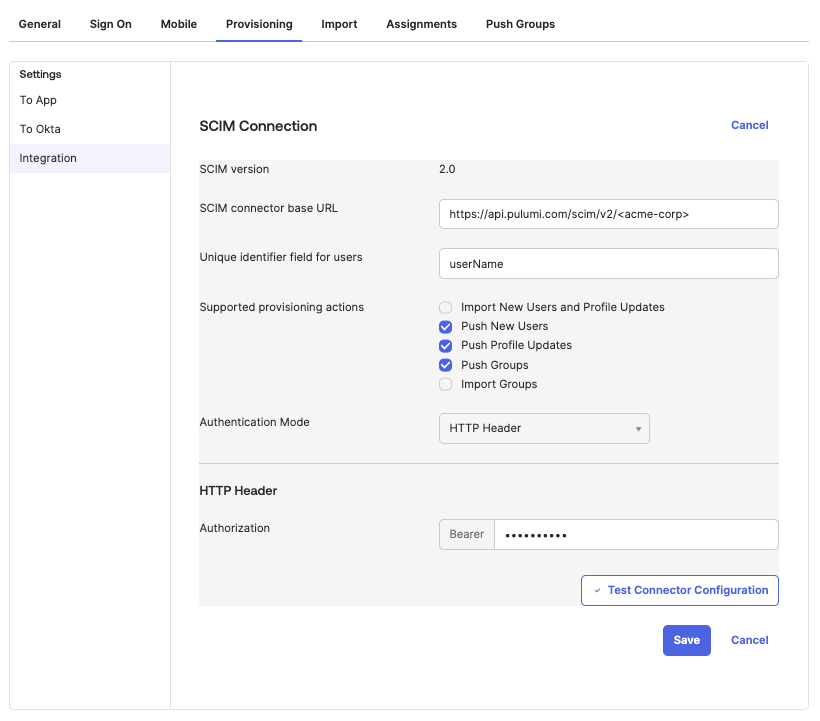

    The following shows how your SCIM connection info should be filled in.

    Okta SCIM provisioning

    Enabling SCIM Provisioning Actions

    To configure the actions that Okta will send to the Pulumi Cloud, you need to enable them.

    1. Under the Provisioning tab, click Edit.

    2. While you are in the To App section, check Enable on the following:

      • Create Users
      • Update User Attributes
      • Deactivate Users
    3. Select Save.

    Adjusting the Okta to Pulumi Attribute Mappings

    Now that the SCIM connector knows how to connect to Pulumi, you need to adjust the attributes that Okta will send to Pulumi and what it might receive back from Pulumi. To do that, perform the following steps:

    1. Under Provisioning > To App, click Go to Profile Editor.

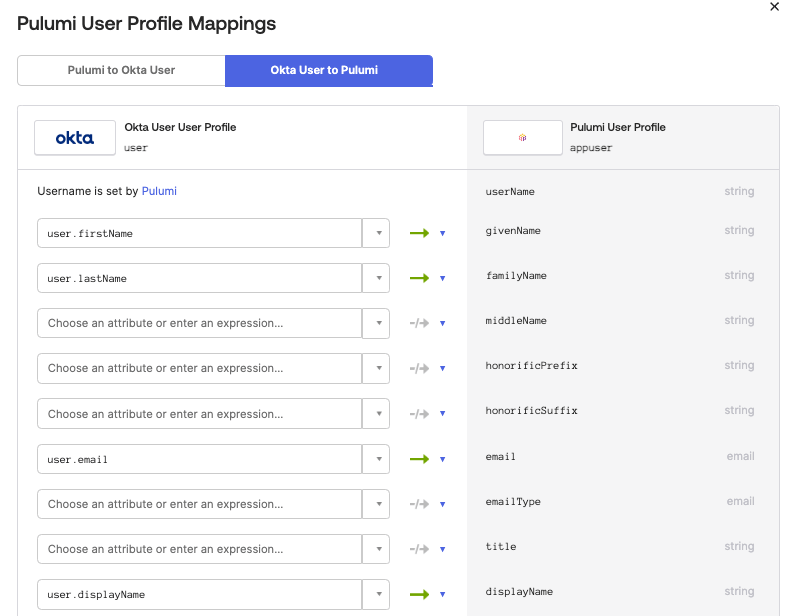

    2. Click Mappings to open the Attribute Editor dialog box.

    3. Click on the Okta User To … tab and un-map all but the following attributes:

      • givenName
      • familyName
      • displayName
      • email
    4. Click Save Mappings.

    5. Click Apply Updates.

    Okta Profile Mapping

    Adjusting the Okta to Pulumi Username Mappings

    Pulumi usernames are immutable and should not be changed after a user is associated with a Pulumi application. To disable Okta from pushing username updates to Pulumi, perform the following steps:

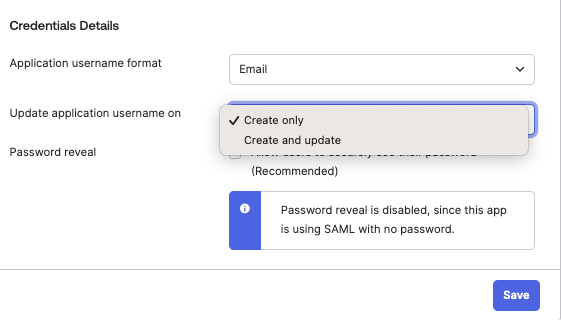

    1. Under Sign On in the Settings module, select Edit.
    2. Under Credentials Details, change Update application username on from Create and update to Create only.
    3. Select Save.

    Okta Usernames Set on Create Only

    Setting up Group Provisioning

    The Pulumi Cloud supports the provisioning of teams within your organization using SCIM. This is done by mapping the groups you have created using SCIM to create teams within your organization in the Pulumi Cloud. Setting this up allows you to manage your teams’ memberships solely in Okta.

    To set this up, you need to enable Push Groups as a supported provisioning action under the Provisioning settings and then specify which groups you would like to push. To do that, perform the following steps:

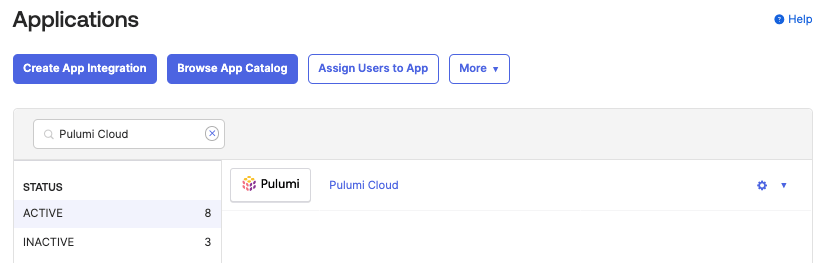

    1. Navigate to the application that you created above by clicking the on the Applications tab and then selecting the application.

      Okta application selection

    2. Click on Provisioning tab, then click on the integrations menu option located on the left side navigation.

    3. Check the Push Groups box under Supported provisioning actions.

    4. Select the Push Groups tab.

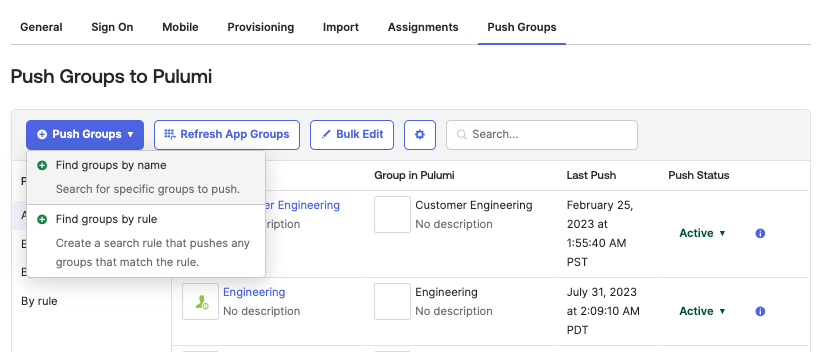

    5. Select the Push Groups drop down menu. Here you will have the option to find groups either by name or rule.

      Push Groups drop down menu in Okta

    6. Select Find groups by name. This will take you to a screen where you can search groups by the group name. Once you find the group(s) that you are looking for, click Save.

      You will notice there is a checkbox labeled Push group memberships immediately. This will also add all the members that are part of your group to the Pulumi team after your selection has been saved.

    7. After clicking Save, you should see that your group was pushed and it should say Active.

    If there are members in a group that are not yet assigned to the Pulumi Cloud application in Okta, they will not be added to the team in the Pulumi Cloud. Ensure that all members in the group have been assigned to the application before pushing the group.

    Verifying Group Provisioning

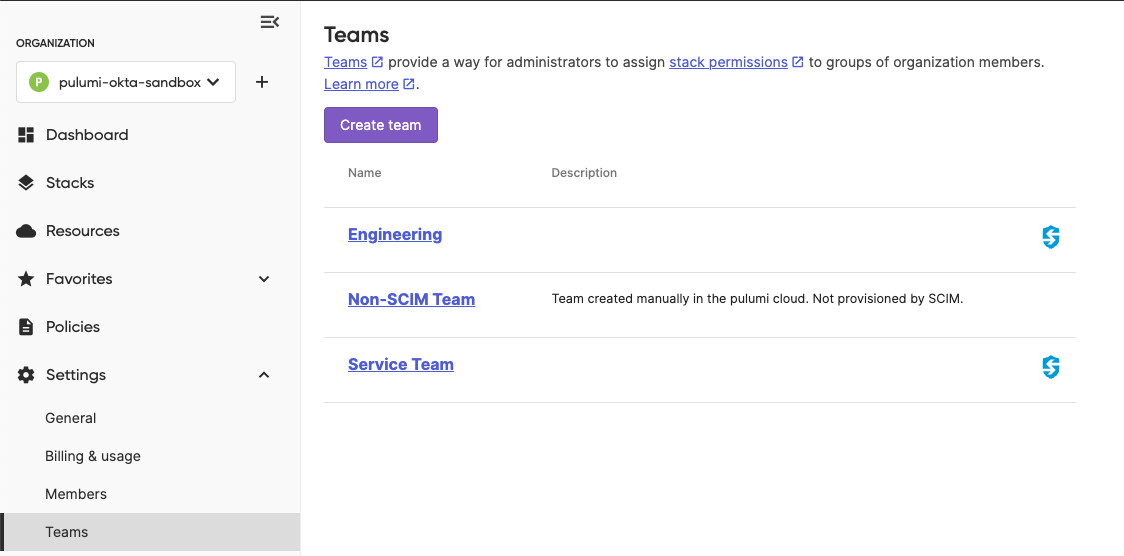

    To confirm that the groups were provisioned correctly, sign in to the Pulumi Cloud and select Settings > Teams from the left navigation.

    SCIM teams

    Teams provisioned with SCIM will be marked with a blue SSO icon. Select the provisioned team and verify its membership.

    SCIM provisioned team memberships cannot be altered within the Pulumi Cloud. If any membership changes are needed, they must be done within Okta. This ensures your teams on the Pulumi side will always mirror the groups you have configured in Okta.

    Known Limitations

    Some SCIM features are currently not supported:

    • Secondary emails
    • Password sync
    • Bulk importing
