Helm Chart on Kubernetes

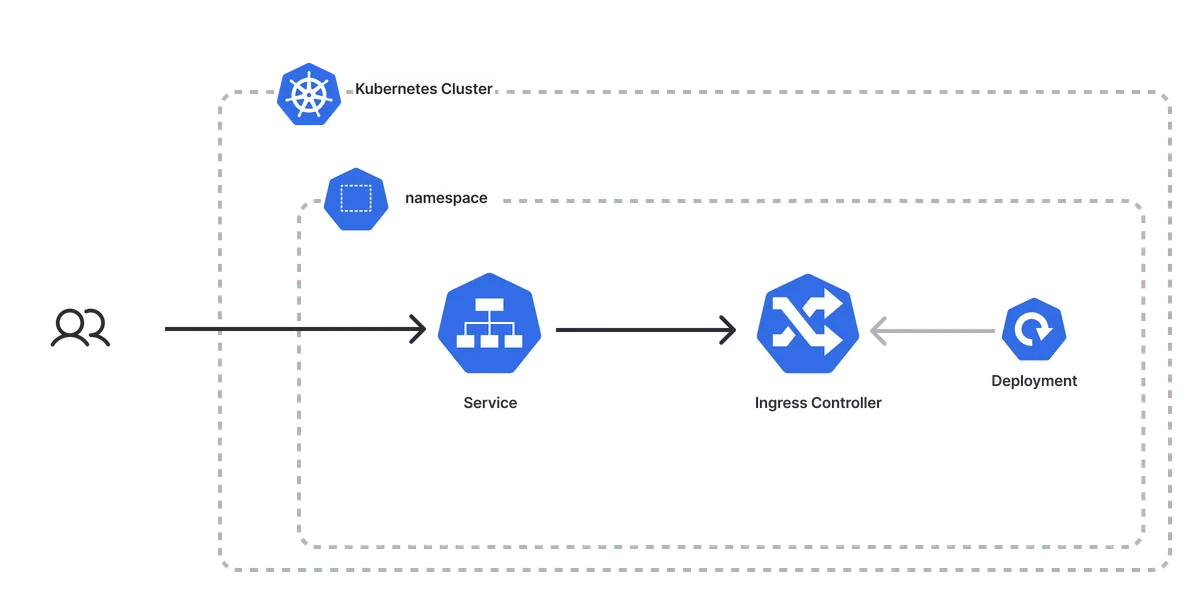

The Helm Chart template scaffolds a Pulumi project that deploys a Helm chart to an existing Kubernetes cluster using Pulumi’s Kubernetes provider. The template creates a new namespace in the cluster and installs an Nginx ingress controller as the default chart, so the project deploys end to end out of the box.

Using this template#

To use this template, make sure you’ve already provisioned a Kubernetes cluster, installed Pulumi and kubectl, and configured your kubeconfig file. Then create a new project using the template in the language of your choice:

TypeScript

TSPYGOC#YAMLHCL

$ mkdir my-k8s-app && cd my-k8s-app
$ pulumi new helm-kubernetes-typescript

Alternatively, you can create and configure a new project with this template (helm-kubernetes-typescript) in Pulumi Cloud.

Deploy with Pulumi

Follow the prompts to complete the new-project wizard. When it’s done, you’ll have a complete Pulumi project that’s ready to deploy and configured with the most common settings. Feel free to inspect the code in index.ts for a closer look.

Deploying the project#

The template requires no additional configuration. By default, it will install an Nginx ingress controller with Helm. Once the new project is created, you can deploy it with pulumi up:

$ pulumi up

When the deployment completes, Pulumi exports the following stack output values:

name

The name of your new Helm chart deployment.

Output values like these are useful in many ways, most commonly as inputs for other stacks or related cloud resources.

Customizing the project#

Projects created with the Helm Chart template expose the following configuration settings:

TypeScript

TSPYGOC#YAMLHCL

k8sNamespace

The name of the namespace to be created in your existing cluster. Defaults to nginx-ingress.

All of these settings are optional and may be adjusted either by editing the stack configuration file directly (by default, Pulumi.dev.yaml) or by changing their values with pulumi config set:

TypeScript

TSPYGOC#YAMLHCL

$ pulumi config set k8sNamespace my-namespace
$ pulumi up

You can customize the Helm chart by passing values to it in your Pulumi code. An example of passing a few values to the chart is included in the template for reference.

Cleaning up#

You can cleanly destroy the stack and all of its infrastructure with pulumi destroy:

$ pulumi destroy

Learn more#

• Browse other architecture templates in the Templates gallery.
• Explore the Kubernetes provider API docs in the Pulumi Registry.
• Walk through Pulumi from the ground up in Pulumi Tutorials.
• Read the latest Kubernetes posts on the Pulumi blog.
