Virtual Machine on AWS

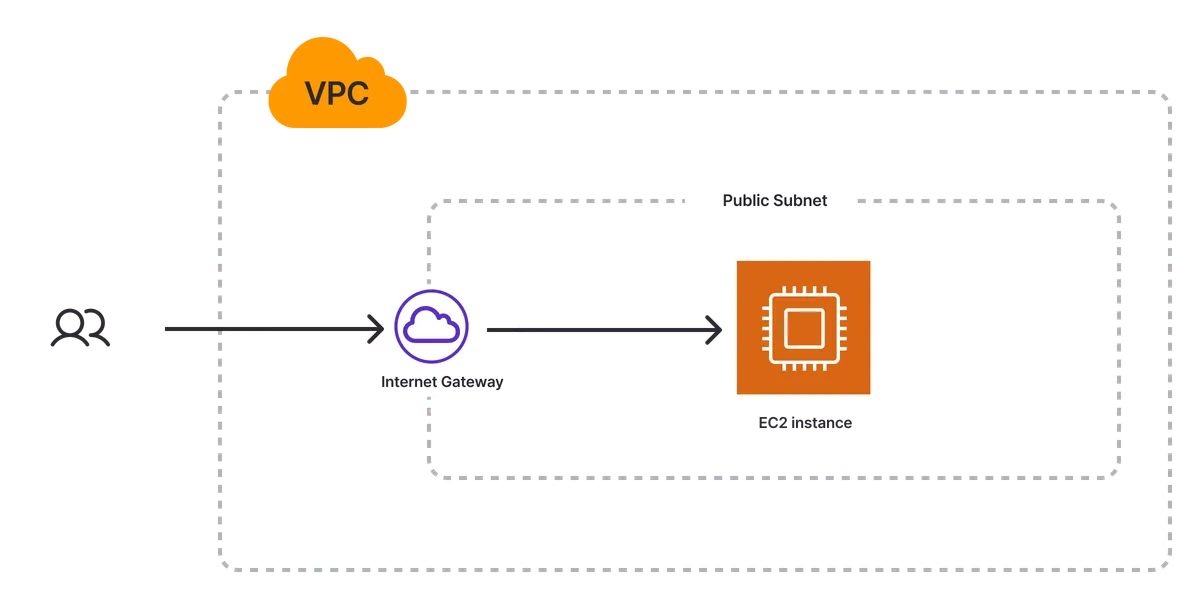

The AWS Virtual Machine template scaffolds a Pulumi project that provisions an Amazon EC2 instance running Amazon Linux 2023 inside a new Amazon VPC. The instance boots a small Python HTTP server on port 80 from user data, so the project deploys end to end out of the box. Use it as a starting point for a web application, backend service, or database VM.
Using this template#
To use this template to deploy your own virtual machine, make sure you’ve installed Pulumi and configured your AWS credentials, then create a new project using the template in the language of your choice:
TypeScript
Python
Go
C#
YAML
HCLmkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-typescriptAlternatively, you can create and configure a new project with this template (vm-aws-typescript) in Pulumi Cloud.
mkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-pythonAlternatively, you can create and configure a new project with this template (vm-aws-python) in Pulumi Cloud.
mkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-goAlternatively, you can create and configure a new project with this template (vm-aws-go) in Pulumi Cloud.
mkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-csharpAlternatively, you can create and configure a new project with this template (vm-aws-csharp) in Pulumi Cloud.
mkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-yamlAlternatively, you can create and configure a new project with this template (vm-aws-yaml) in Pulumi Cloud.
mkdir my-virtual-machine && cd my-virtual-machinepulumi new vm-aws-hclAlternatively, you can create and configure a new project with this template (vm-aws-hcl) in Pulumi Cloud.
Follow the prompts to complete the new-project wizard. When it’s done, you’ll have a complete Pulumi project that’s ready to deploy and configured with the most common settings. Feel free to inspect the code in index.tsindex.js__main__.pymain.goProgram.csProgram.fsProgram.vbApp.javaPulumi.yaml for a closer look.
Deploying the project#
The template requires no additional configuration. Once the new project is created, you can deploy it immediately with pulumi up:
pulumi upWhen the deployment completes, Pulumi exports the following stack output values:
- ip
The IP address of the EC2 instance.
- hostname
The provider-assigned hostname of the EC2 instance.
- url
The fully-qualified HTTP URL of the HTTP server running on the EC2 instance.
Output values like these are useful in many ways, most commonly as inputs for other stacks or related cloud resources. The computed url, for example, can be used from the command line to open the newly deployed website in your favorite web browser:
open $(pulumi stack output url)Customizing the project#
Projects created with the Virtual Machine template expose the following configuration settings:
- instanceType
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpcNetworkCidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.
- instanceType
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpcNetworkCidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.
- instanceType
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpcNetworkCidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.
- instanceType
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpcNetworkCidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.
- instanceType
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpcNetworkCidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.
- instance_type
The EC2 instance type to use for the VM. Defaults to
t3.micro.- vpc_network_cidr
The network CIDR to use for the VPC. Defaults to
10.0.0.0/16.- service_port
The HTTP service port to expose on the VM. Defaults to
80.
All of these settings are optional and may be adjusted either by editing the stack configuration file directly (by default, Pulumi.dev.yaml) or by changing their values with pulumi config set:
Cleaning up#
You can cleanly destroy the stack and all of its infrastructure with pulumi destroy:
pulumi destroyLearn more#
