Kubernetes application deployed to multiple clusters

This example lives in the pulumi/examples repository. Check out just this directory to use it:

$ git clone --filter=blob:none --sparse https://github.com/pulumi/examples pulumi-examples
$ git -C pulumi-examples sparse-checkout set kubernetes-ts-multicloud
$ cd pulumi-examples/kubernetes-ts-multicloud

This example creates managed Kubernetes clusters using AKS, EKS, and GKE, and deploys the application on each cluster.

Prerequisites#

1. Install Pulumi
2. Install Node.js
3. (Optional) Configure AWS credentials
4. (Optional) Configure Azure credentials
5. (Optional) Configure GCP credentials
6. (Optional) Configure local access to a Kubernetes cluster

Deploying the example#

1. Create a new stack:

   pulumi stack init dev

2. Set the required configuration variables for this program:

   pulumi config set aws:region us-west-2                # Any valid AWS region here.
   pulumi config set azure:location westus2              # Any valid Azure location here.
   pulumi config set gcp:project [your-gcp-project-here]
   pulumi config set gcp:zone us-west1-a                 # Any valid GCP zone here.

   Note that you can choose different regions here. We recommend using us-west-2 to host your EKS cluster as other regions (notably us-east-1) may have capacity issues that prevent EKS clusters from creating.

3. (Optional) Disable any clusters you do not want to deploy by commenting out the corresponding lines in the index.ts file. All clusters are enabled by default.

4. Install dependencies:

   npm install

5. Deploy the stack, which will create the selected managed Kubernetes clusters, and deploy an application to each of them:

   pulumi up

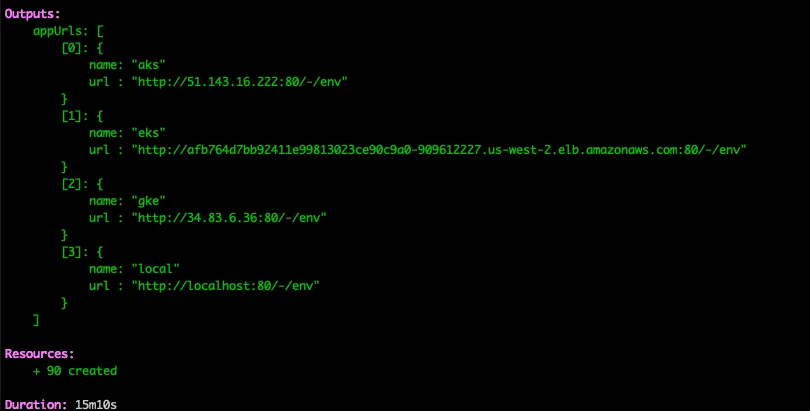

   Here’s what it should look like once it completes:

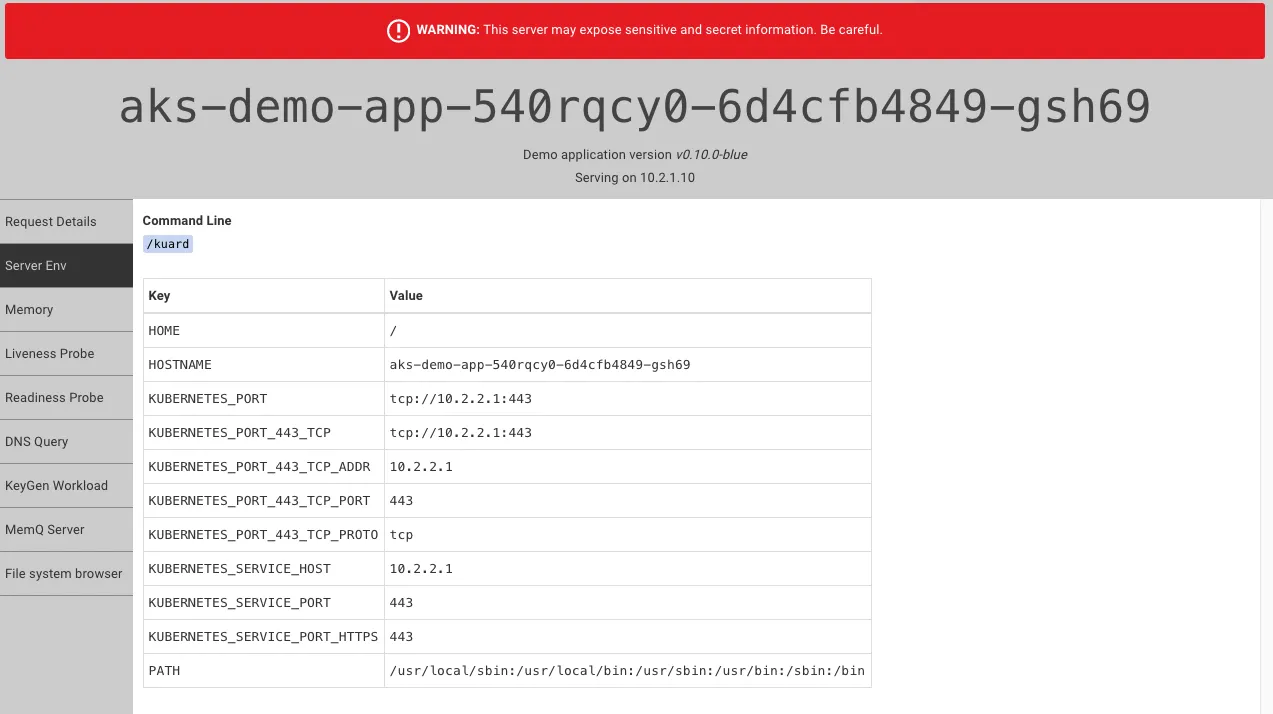

6. You can connect to the example app (kuard) on each cluster using the exported URLs.

   Important: This application is exposed publicly over HTTP, and can be used to view sensitive details about the node. Do not run this application on production clusters!

Cleaning up#

Once you’ve finished experimenting, tear down your stack’s resources by destroying and removing it:

pulumi destroy
pulumi stack rm

Note: The static IP workaround required for the AKS Service can cause a destroy failure if the IP has not finished detaching from the LoadBalancer. If you encounter this error, simply rerun pulumi destroy, and it should succeed.
