Here at Pulumi we are (perhaps unsurprisingly!) huge fans of using Pulumi to manage our cloud infrastructure and services. We author our infrastructure in strongly-typed programming languages, which allows us to to benefit from rich tooling - documenting and factoring our infrastructure using the same software engineering practices we apply to our application code. This also allows us to create reusable abstractions which accelerate our ability to deliver new features and services, and our ability to standardize and refactor infrastructure patterns across our services with relative ease.
Like other users, we use Pulumi at a variety of levels of abstraction. We use Pulumi for raw infrastructure provisioning, defining the core networking layer for our AWS-based backend infrastructure. And we use Pulumi to define how our application services are deployed into ECS using just a few lines of code. Pulumi hosts and manages static content for www.pulumi.com and get.pulumi.com. We use Pulumi to define the CloudWatch dashboards connected to our infrastructure. And for monitoring, Pulumi defines metrics and notifications/alarms in PagerDuty and Slack.
Best of all, we’ve been able to take things we’ve learned from these use
cases, and others we’ve worked with beta users on over the last few
months (thank you!), and factor common patterns out into reusable
@pulumi/cloud for ourselves and
others to build upon.
In this post, we’ll do a deeper dive into each of these use cases, highlighting unique aspects of how we use Pulumi itself, and some of our engineering processes around how we integrate Pulumi into the rest of our toolchain.
Our backend infrastructure that supports https://app.pulumi.com and the Pulumi CLI is fairly typical of a cloud service/application building on AWS. Those who have done this before will be familiar with the combination of AWS VPC, EC2, ASG, ALB, ECS, S3, Aurora, CloudFront and Route53 that powers the core of many AWS-based web applications.
We started off building this infrastructure last year - before we even had completed support for managing AWS resources in Pulumi! As a result, we brought this up initially using CloudFormation. Moving this to Pulumi was an amazing experience. We immediately brought more engineering rigour to the codebase, factoring and decomposing functionality in clearer ways, extracting out useful patterns into named functions, using loops and conditionals instead of copy/paste, and getting completion lists and on-the-fly error checking from within our development tools.

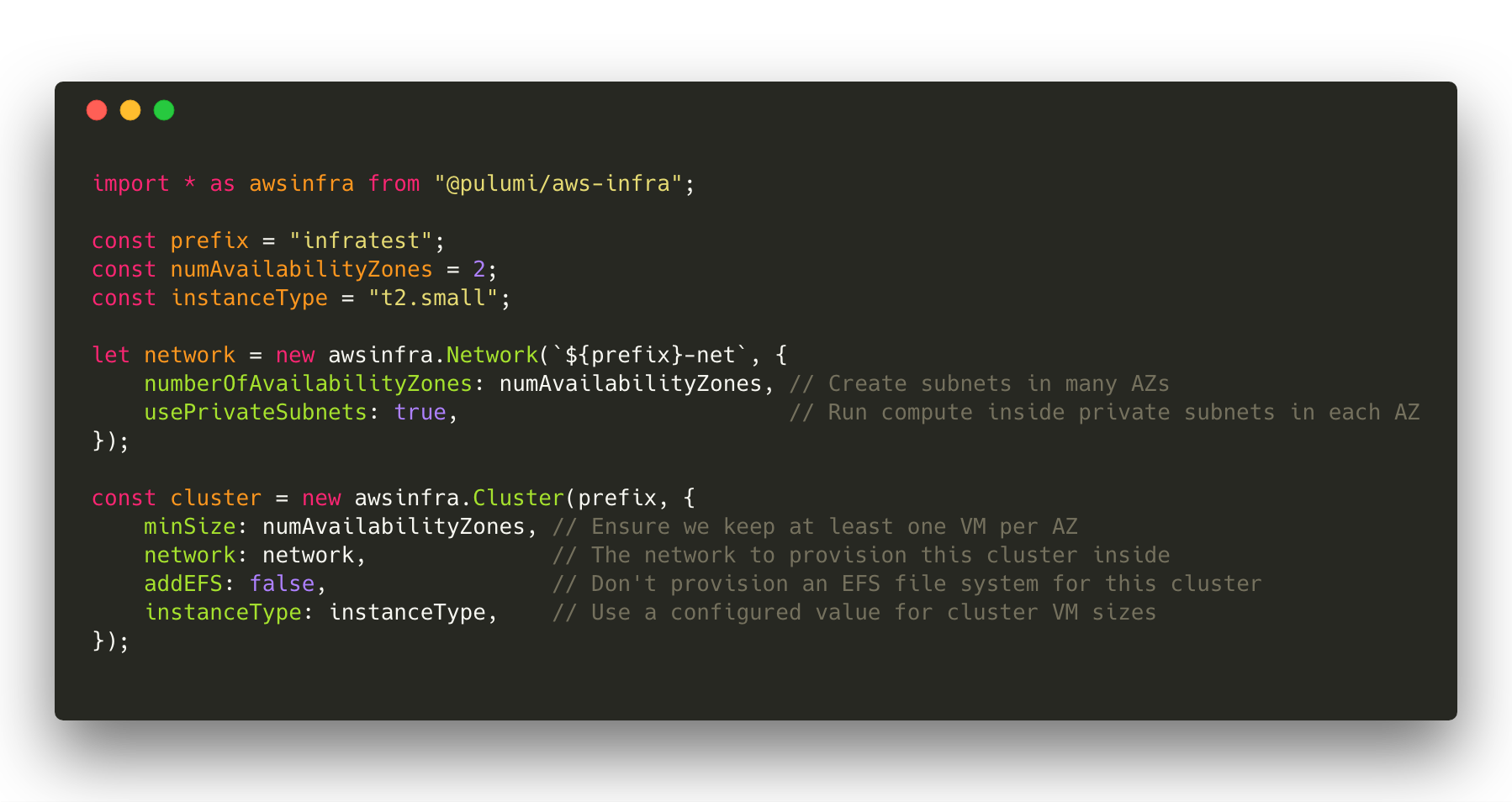

Equally important, authoring our infrastructure in Pulumi gave us the
ability to factor out reusable abstractions. We found that our own VPC
definition was something that many early customers we worked with also
needed - so we factored it out into
new awsinfra.Network. We found
that standing up an ECS cluster was another big pile of AWS resources
that are commonly needed, but can be configured with a much smaller
space of configuration values in the common case, so we factored out
Defining infrastructure in Pulumi made it easy to stand up many
instances of our service, including per-developer stacks, with just
pulumi stack init my-developer-stack and
pulumi update. The ability
to build reusable components which can be multi-instantiated into the
same target cloud is critical here, and something that Pulumi takes care
of by default. Within minutes, a developer can have an isolated copy of
our full infrastructure stood up, which can be used to test out and
quickly iterate on changes. This includes not just the basic
infrastructure, but also provisioning of DNS entries in Route53 and
creation of custom CloudWatch dashboards (see more on this below).
We have three shared environments - development, staging and
production - each an isolated environment with separate
configuration. For these shared environments we drive deployments of the
Pulumi programs that define the infrastructure above via our CI/CD
pipeline. Pulumi can be integrated into any existing CI/CD pipeline or
toolchain, via direct use of
pulumi preview and
pulumi update as
part of build and deployment stages. This allows us to reliably deliver
a known desired state for each target environment, and to promote
changes between environments with just a
API and App Services
Most of our backend application services are developed in Go, and we deploy them onto our production infrastructure as container images. However, instead of building separate CI pipelines for our container images and the infrastructure they need to function correctly (ECS Service, Application Load Balancer, ECR Repository, etc.), we drive the deployment of both infrastructure and application code via a single Pulumi program. This allows our application code to version along with its supporting infrastructure - when we need to expose a new port for example, we can make the changes to both application code and load balancer as part of a single commit, and promote it through CI as an atomic action. We have found this to significantly simplify the delivery of containerized services on AWS, as well as making it easy to stand up new services into our existing shared networking and cluster infrastructure.
Again, we found this to be a common pattern as we worked with other
early customers, and factored out a library to simplify deployment of
containerized services into a production deployment on AWS as part of
cloud.Service API in

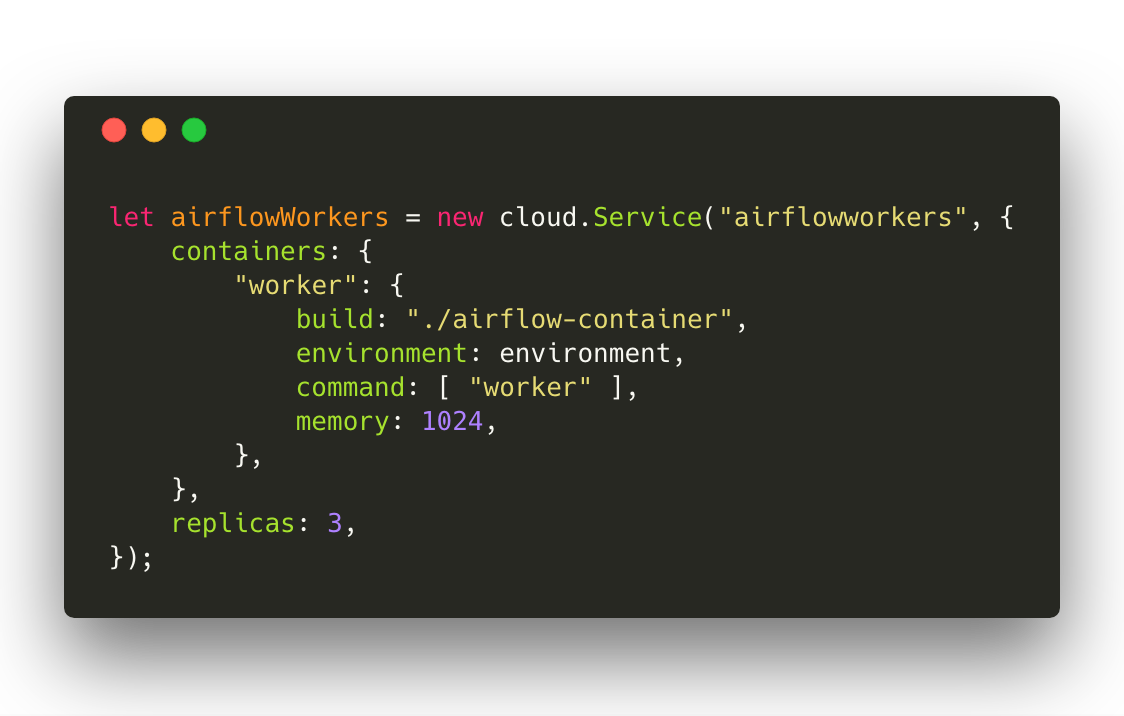

@pulumi/cloud. Here’s an example of using
an application service defined in the
./airflow-container folder (with
Dockerfile) into an ECS cluster. This one declaration will provision
a scaled-out ECS Service for running the container images, a ECR
repository to store the image, optionally a load balancer if ports were
exposed, and each
pulumi update will build the container image, push
it to the private repository, and turn-over each service task to use the
new image. All of that workflow complexity is abstracted away behind a
simple API and a single CLI command.
Metrics, Alarms and Dashboards
We also use Pulumi to define a few less traditional parts of our infrastructure - including our metrics, dashboards and alarming infrastructure on top of AWS CloudWatch.
Defining and versioning this along with our infrastructure has significant benefits: new features are built with metrics, dashboards and alarms lit up from the get-go, developers get a full set of dashboards as part of their personal isolated development environments, and promotions from development to staging to production can verify not just physical infrastructure, but also that alarms and dashboards are behaving as expected prior to pushing code to production. Here’s a sample of our CloudWatch dashboards:

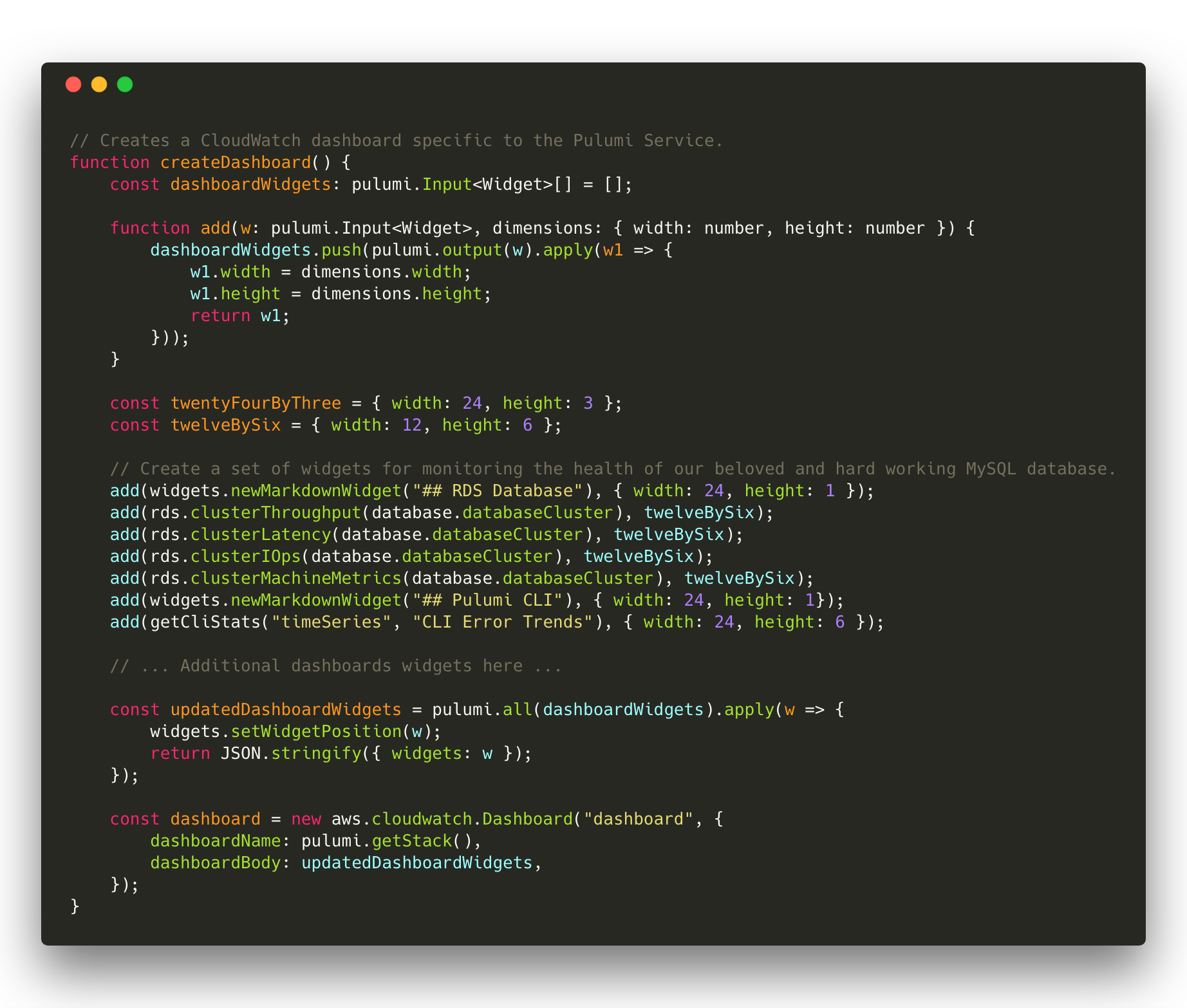

We build up AWS resources representing CloudWatch dashboards using a compositional framework shown below. As this example shows, bringing software engineering approaches to infrastructure as code can lead to new approaches to how code is authored and factored - and ultimately to the creation of higher level frameworks for building domain-specific cloud infrastructure - in this case, CloudWatch dashboards.
The same metrics that power these dashboards are also used to power
notifications and alarms. In these cases, we want to define both the
infrastructure for the alarm - the SNS topics and registration of those
topics with CloudWatch - as well as the small piece of code that fires
off Pagerduty and Slack notifications on notifications being pushed to
that SNS topic - all in one codebase. This ensures that we can version
these together, and that we can deploy both consistently as part of
updates. To do this, we include the event handlers for these
infrastructure events directly inline in our Pulumi programs. Note in
the code snippet below how we define the infrastructure for a
and then conditionally wire up event handlers on that topic, including
the code to execute at runtime on these events directly in our Pulumi
program. This code can even reach out and reference configuration used
to provision our Pulumi deployment - key to enabling this to be deployed
seamlessly into a variety of different development environments.

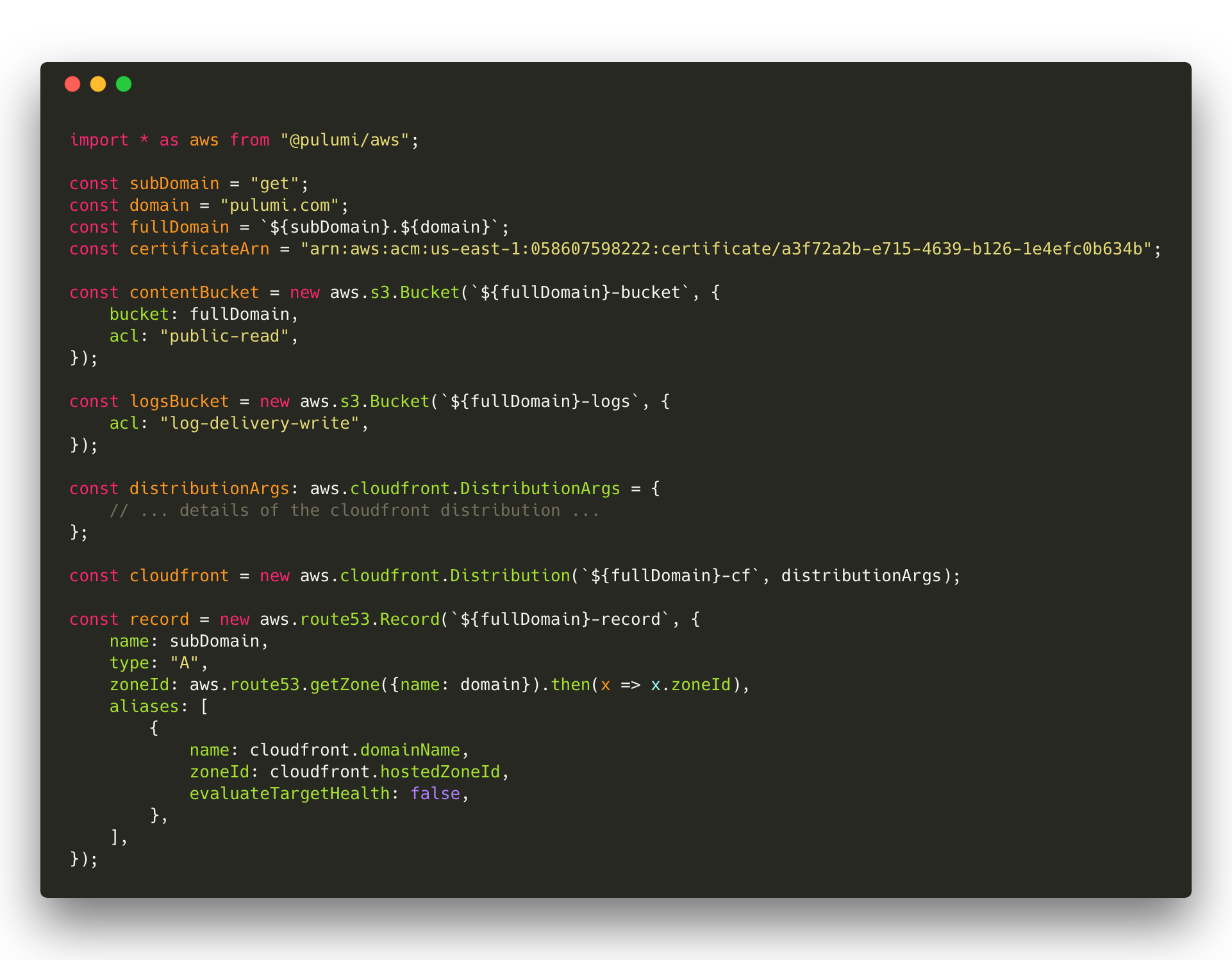

We serve three properties as static content from S3, each described
using Pulumi. One of these is
https://get.pulumi.com which hosts downloads
pulumi CLI installer. It’s a very simple program, and even
better - it’s open source at http://github.com/pulumi/get.pulumi.com.
It combines AWS S3, CloudFront and Route53.

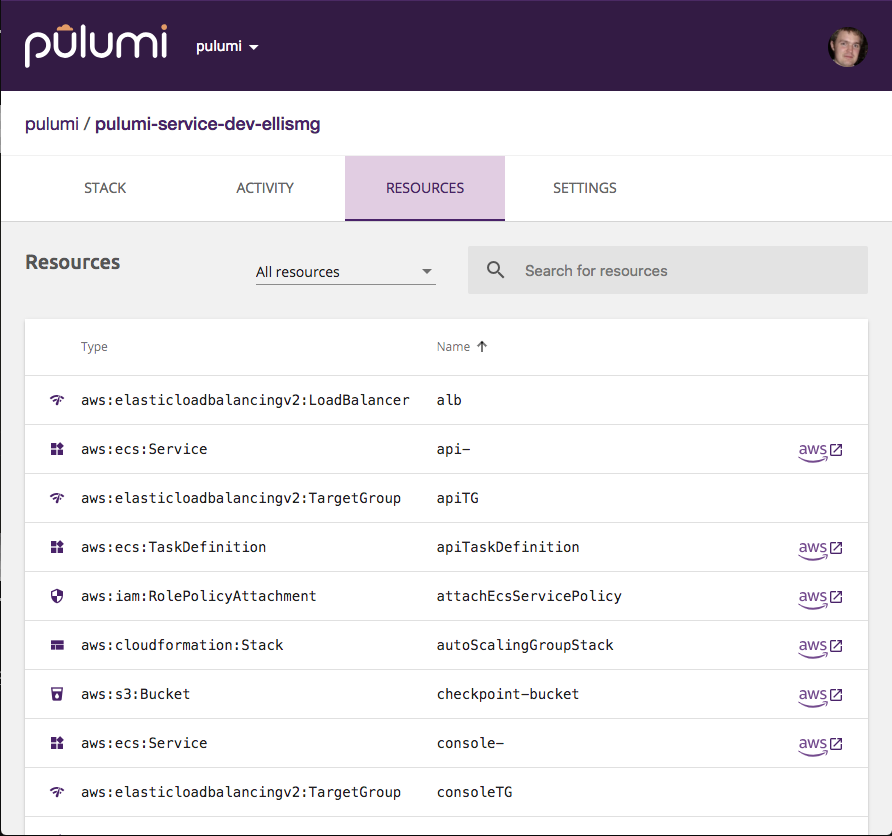

This infrastructure is deployed and managed using the Pulumi console at app.pulumi.com, allowing us to track the history of deployments and changes to the infrastructure and quickly jump in to the resources defined by this stack in the AWS console.
Treating cloud infrastructure as software has changed how we think about infrastructure engineering. Using Pulumi for both traditional cloud infrastructure as well as to get application code and supporting service infrastructure into production provides a simple workflow and the ability to create simple high-level APIs to make new services easy to define and deploy.
Try out Pulumi yourself today!
