Easy LangServe Apps with Pulumi on AWS

Posted on

We all know how easy it is to create, deploy, and manage any cloud infrastructure with Pulumi using your favorite programming language. With the rise of artificial intelligence (AI) more and more developers are working on LLM-powered applications and services. And with this, the need to have the same ease of use for creating, deploying, and managing the infrastructure for these applications is growing.

In this blog post, we will show you how to this can be achieved with combining Pulumi and LangServe.

What is πŸ¦œοΈπŸ“ LangServe?

LangServe is part of the awesome πŸ¦œοΈπŸ”— LangChain framework. LangChain simplifies the process of creating generative AI application interfaces. Generative AI applications are powered by large language models (LLMs) and deliver an answer to your question (called prompts) in natural language. This becomes even more interesting and useful once you integrate with your own private data and APIs. Some popular use cases could be:

  • Ask a question over your company’s internal knowledge base
  • Summarize a document
  • Text extraction or data labeling

Building these types of integrations often needs to build pipelines (called typically chains), starting from the prompt and enriching the prompt with your own data. Here is where LangChain comes into play.

LangChain gives you all the abstractions you need to start building your own LLM app. It has many components ready to use for you, like LLMs, chat and text embedding modes, and vector stores, and many more.

Once we have our prototype chain ready, we can now use LangServe to expose it as a REST API.

Getting Started with LangServe and Pulumi on AWS

After all the theory, let’s get our hands dirty and start building our first LangServe app with Pulumi on AWS. For this we can use one of the LangServe example projects from the Pulumi examples repository.

The AWS architecture you will get out of the box will look like this:

LangServe AWS Architecture

The Pulumi LangServe AWS architecture consists of the following components:

  • Docker Image resource, to build and push the LangServe app to the AWS Elastic Container Registry (ECR).
  • AWS Application Load Balancer (ALB) to expose the LangServe app to the public internet.
  • AWS Fargate to run the LangServe app in a serverless manner.
  • AWS Parameter Store to store the LangServe app’s configuration.
  • Some IAM roles and policies to allow the different components to interact with each other.
  • A VPC, Subnets, and Security Groups to isolate the LangServe app from the rest of your infrastructure.

I will use the Python example (aws-py-langserve), but you can use any of the other supported language. The examples are available here and ready to use as a base for our two demo projects.

Create a Gandalf Chatbot App πŸ§™β€β™‚οΈ

Please make sure that you have OPENAI_API_KEY environment variable set with your OpenAI API key.

Our first example is a chatbot app with a twist. We will use LangChain to create chain that will answer questions about Middle-earth as Gandalf the wizard. The chain will be exposed as a REST API with LangServe and deployed with Pulumi.

First clone the example repository, and head to the aws-py-langserve directory:

git clone https://github.com/pulumi/examples.git
cd examples/aws-py-langserve

In the app folder create a new Python file called chain.py and add the following code:

from langchain_openai import ChatOpenAI
from langchain_core.prompts import ChatPromptTemplate

_prompt = ChatPromptTemplate.from_template(
    "You are Gandalf the Grey, with his deep knowledge of Middle-earth, 'Let me tell you about {text}'"
)
_model = ChatOpenAI()
chain = _prompt | _model

Here we define a new chain with a prompt and a model. We provide the prompt to the model with a surrounding text to set up the context for the model. The model will then answer the prompt with a response.

This can be as simple or complex as you want. In our case, we will keep it simple, and tell the model that it is Gandalf and that he has deep knowledge of Middle-earth. Then we pass the text to the model and let it answer.

Open the server.py file and add the following code:

from app.chain import chain as gandalf_chain

# ... rest of the code

add_routes(
    app,
    gandalf_chain,
    path="/openai",
)

You can test the chain locally with the following command:

langchain serve

You can either use the playground or curl to test the chain. The playground is a web interface where you can test the chain. You can access it by opening your browser and navigating to http://localhost:8000/openai/playground.

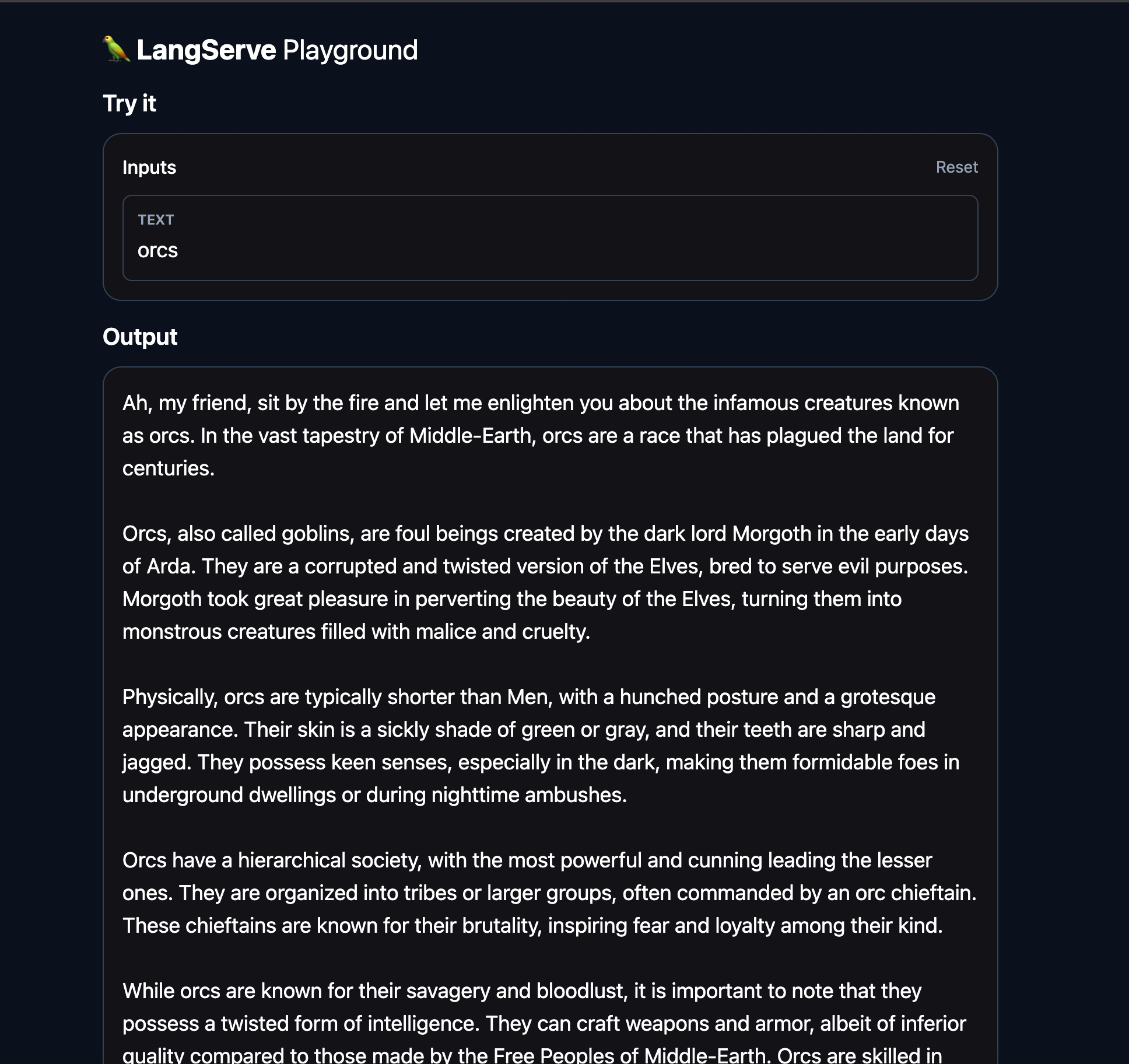

Playground

Or you can use curl to test the chain:

curl http://127.0.0.1:8000/openai/stream  -X POST -H "Content-Type: application/json" --data  '{"input": {"text": "orcs"}}'

# ... omitted output
event: data
data: {"content":"ondrous","additional_kwargs":{},"type":"AIMessageChunk","example":false}

event: data
data: {"content":" land","additional_kwargs":{},"type":"AIMessageChunk","example":false}

event: data
data: {"content":".","additional_kwargs":{},"type":"AIMessageChunk","example":false}

event: data
data: {"content":"","additional_kwargs":{},"type":"AIMessageChunk","example":false}

event: end

To deploy the chain with Pulumi, you can use the following command:

pulumi login # if you haven't logged in yet
pulumi config set open-api-key --secret # your openai api key
pulumi up

This will first give you an outline of all the resources that will be created and then ask you to confirm the changes. If you are happy with the changes, you can confirm them by typing yes.

After the deployment is finished, you will get the URL of the deployed LangServe app. You can use this URL to test the app either with the playground or curl. Same as you did locally. The URL will look like this:

https://<your-alb-dns-name>/openai/playground

Gandalf AWS

If you want to destroy the stack, you can use the following command:

pulumi destroy

The Pulumi CLI will ask you to confirm the changes, and if you are happy with the changes, you can confirm them by typing yes.

Create a Pinecone RAG App

Please make sure that you have the following API keys set:

  • PINECONE_API_KEY environment variable set with your Pinecone API key. You can get it from the Pinecone console.
  • OPENAI_API_KEY environment variable set with your OpenAI API key.

Our second example will show you how to create a RAG (Retrieval-Augmented Generation) app with Pinecone vector databases. The clue of this example here is to show you how easy you can extend the Pulumi LangServe example to deploy additional cloud resources. In this case, we will deploy a Pinecone index to use it in our LangServe app. Pulumi and Pinecone recently released a dedicated Pulumi provider for Pinecone. This provider allows you to create and manage Pinecone indexes with Pulumi.

As an external knowledge base, we will use Wikipedia to load information about Gandalf the Grey and ingest them into our Pinecone index.

First clone the example repository, and navigate to the aws-py-langserve directory:

git clone https://github.com/pulumi/examples.git
cd examples/aws-py-langserve

To use the Pulumi Pinecone provider, you need to install it first:

echo "pinecone_pulumi==0.4.0" >> requirements.txt

Now open the __main__.py file and add the following code at the end of the file:

import pinecone_pulumi as pinecone

# ... omitted code
pinecone_provider = pinecone.Provider("pinecone_provider",
                                      api_key=pinecone_api_key)

pinecone_rag_index = pinecone.PineconeIndex("pinecone-rag-index",
                                            name="test",
                                            metric=pinecone.IndexMetric.COSINE,
                                            spec=pinecone.PineconeSpecArgs(
                                                serverless=pinecone.PineconeServerlessSpecArgs(
                                                    cloud=pinecone.ServerlessSpecCloud.AWS,
                                                    region="us-west-2",
                                                ),
                                            ),
                                            opts=pulumi.ResourceOptions(provider=pinecone_provider))

Now we need to pass the Pinecone API key to the AWS Parameter Store. Open the __main__.py file and this following line after line 38:

# ... omitted code
pinecone_api_key = config.get("pinecone-api-key")
# ... omitted code

And add line 226 a new secret to the AWS Parameter Store:

# ... omitted code
langserve_ssm_parameter_pinecone = aws.ssm.Parameter("langserve-ssm-parameter-pinecone",
                                                     type="SecureString",
                                                     value=pinecone_api_key,
                                                     key_id=langserve_key.key_id,
                                                     name=f"/pulumi/{pulumi_project}/{pulumi_stack}/PINECONE_API_KEY",
                                                     tags={
                                                         "pulumi-application": pulumi_project,
                                                         "pulumi-environment": pulumi_stack,
                                                     })
# ... omitted code

And to the IAM policy in line 260:

# ... omitted code
"Resource": [langserve_ssm_parameter_arn, langserve_ssm_parameter_pinecone.arn, ],
# ... omitted code

Last but not least, change the Fargate task definition to use the Pinecone API key. Add a new element in line 338:

# ... omitted code
container_definitions = pulumi.Output.all(langserve_ecr_image.repo_digest, langserve_ssm_parameter.name,
                                          langserve_log_group.name, langserve_ssm_parameter_pinecone.name).apply(
    lambda repo_digest, langserve_ssm_parameter_name, langserve_log_group_name,
           langserve_ssm_parameter_pinecone_name: json.dumps([{
# ... omitted code

And add a new array element to line 349:

# ... omitted code
{
    "name": "PINECONE_API_KEY",
    "valueFrom": langserve_ssm_parameter_pinecone_name
}
# ... omitted code

This should create your Pinecone index and update the Fargate task definition to use the Pinecone API key; this is what we are going to need to use the Pinecone index in our LangServe app.

To use the Pinecone index in our LangServe app, we need first to add following packages to our LangChain app:

poetry add pinecone-client
poetry add langchain-community
poetry add langchain-openai
poetry add langchain
poetry add 'tiktoken>=0.5.2,<0.6.0'
poetry add wikipedia

Now we can add chain.py in the app directory and add the following code:

import os

from langchain_openai import ChatOpenAI
from langchain_community.embeddings import OpenAIEmbeddings
from langchain_community.vectorstores import Pinecone
from langchain_core.output_parsers import StrOutputParser
from langchain_core.prompts import ChatPromptTemplate
from langchain_core.pydantic_v1 import BaseModel
from langchain_core.runnables import RunnableParallel, RunnablePassthrough

if os.environ.get("PINECONE_API_KEY", None) is None:
    raise Exception("Missing `PINECONE_API_KEY` environment variable.")

PINECONE_INDEX_NAME = os.environ.get("PINECONE_INDEX", "test")

### Ingest code - you may need to run this the first time
# Load
from langchain_community.document_loaders import WikipediaLoader

loader = WikipediaLoader(query="Gandalf the Grey", load_max_docs=50)
data = loader.load()

# # Split
from langchain.text_splitter import RecursiveCharacterTextSplitter

text_splitter = RecursiveCharacterTextSplitter(chunk_size=500, chunk_overlap=0)
all_splits = text_splitter.split_documents(data)

# # Add to vectorDB
vectorstore = Pinecone.from_documents(
    documents=all_splits, embedding=OpenAIEmbeddings(), index_name=PINECONE_INDEX_NAME
)
retriever = vectorstore.as_retriever()
### End Ingest code

vectorstore = Pinecone.from_existing_index(PINECONE_INDEX_NAME, OpenAIEmbeddings())
retriever = vectorstore.as_retriever()

# RAG prompt
template = """Answer the question based only on the following context:
{context}
Question: {question}
"""
prompt = ChatPromptTemplate.from_template(template)

# RAG
model = ChatOpenAI()
chain = (
    RunnableParallel({"context": retriever, "question": RunnablePassthrough()})
    | prompt
    | model
    | StrOutputParser()
)


# Add typing for input
class Question(BaseModel):
    __root__: str


chain = chain.with_types(input_type=Question)

Head over to the server.py file and add the following code:

from app.chain import chain as rag_chain

# ... rest of the code
add_routes(
    app,
    rag_chain,
    path="/rag-pinecone",
)

To deploy the chain with Pulumi, you can use the following command:

pulumi login # if you haven't logged in yet
pulumi config set open-api-key --secret # your openai api key
pulumi config set pinecone-api-key --secret # your pinecone api key
pulumi up

This will deploy create the AWS infrastructure, and the Pinecone index and then containerize and deploy the LangServe app to AWS Fargate.

After a couple of minutes, you will see in the Pinecone console that the index has been created and the first documents have been ingested from Wikipedia about Gandalf the Grey.

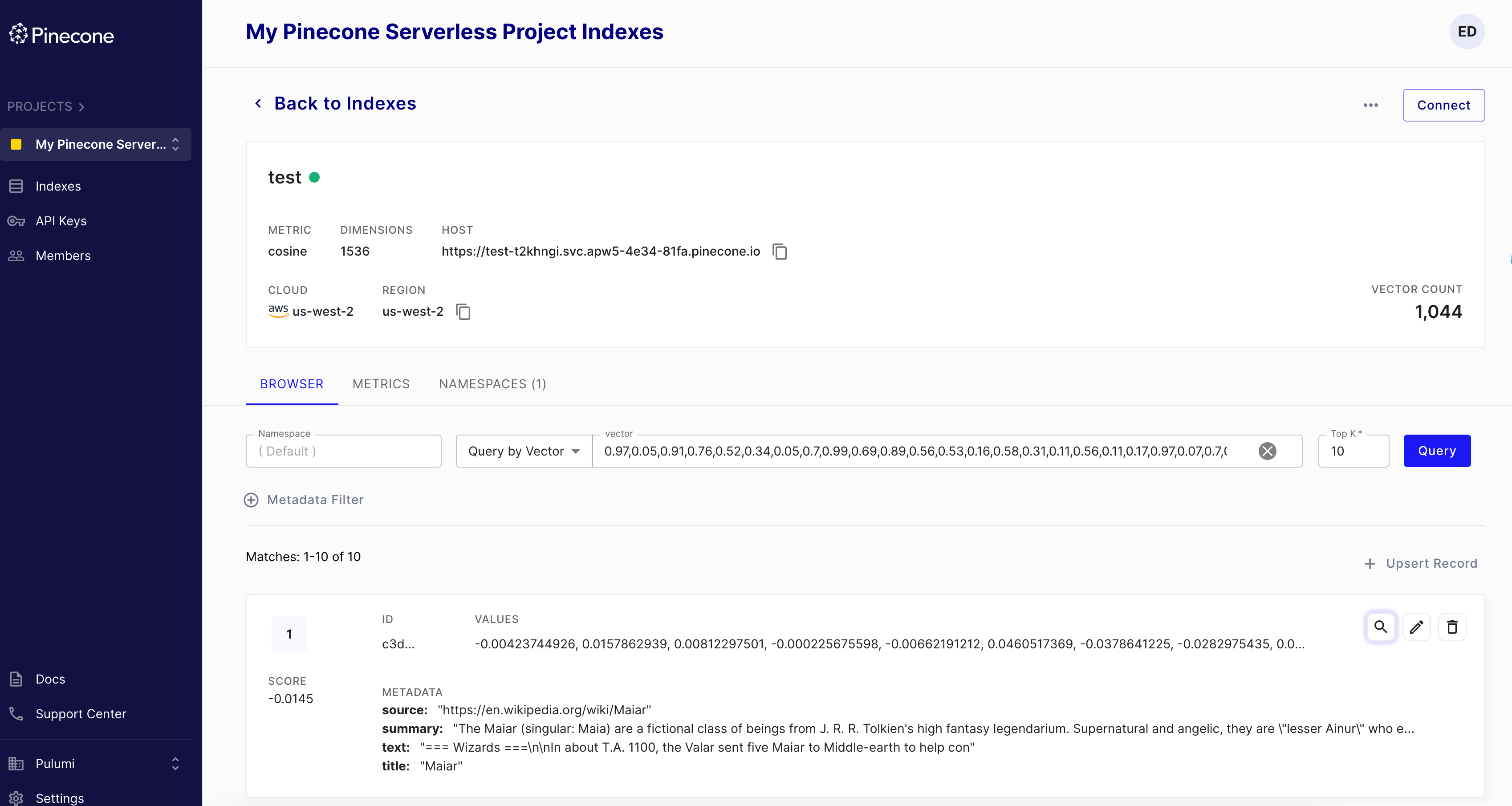

Here a screenshot of the Pinecone console:

Pinecone Console

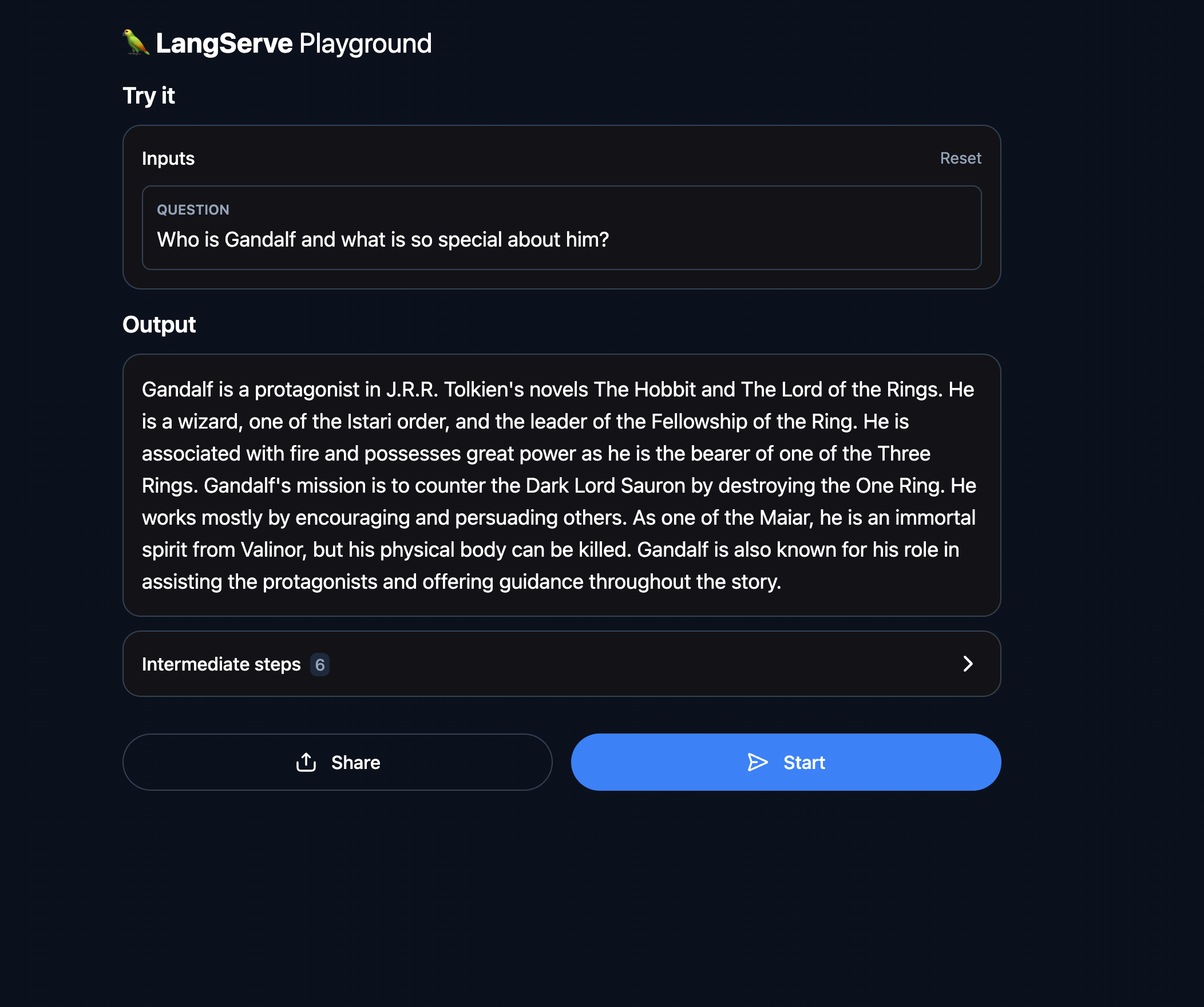

And if you want to test the LangServe app, you can use the playground UI, where you should be able to ask questions about Gandalf the Grey and get answers based on the documents ingested into the Pinecone index.

LangServe Pinecone

When you’re ready to destroy the stack, you can use the following command:

pulumi destroy

The Pulumi CLI will ask you to confirm the changes, and if you are happy with the changes, you can confirm them by typing yes and all the resources will be deleted, including the Pinecone index.

In Conclusion

In this blog post, we showed you how easy it is to create, deploy, and manage LangServe apps with Pulumi. The example projects from the Pulumi examples repository provide an excellent starting point to build your own LLM-powered apps. In the second example, we showed you how to extend the Pulumi code to deploy additional cloud resources, in this case a Pinecone serverless index to hold custom data for our Gandalf app.

Want to get hands on with LangServe and walk through it live? We have two upcoming dates for a workshop focused on LangChain and LangServe!

As always, we welcome your feedback and contributions in the Pulumi Community Slack, GitHub repository, and Pulumi Community Discussions.

New to Pulumi? Signing up is easy and free. Get started today!

Happy AI building!
