Secure your Kubernetes toolchain with Pulumi ESC and OIDC

Posted on

Keeping long-lived kubeconfig around on disk is insecure and error-prone. You need a secure workflow that removes tedium. With Pulumi and ESC, we provide an automated workflow that generates a kubeconfig on-the-fly for every command using short-term credentials issued via OIDC. This makes it easy for your team to connect to a given Kubernetes environment, and it works well with Kubernetes tools such as kubectl and the Pulumi Kubernetes provider. Let’s take a look.

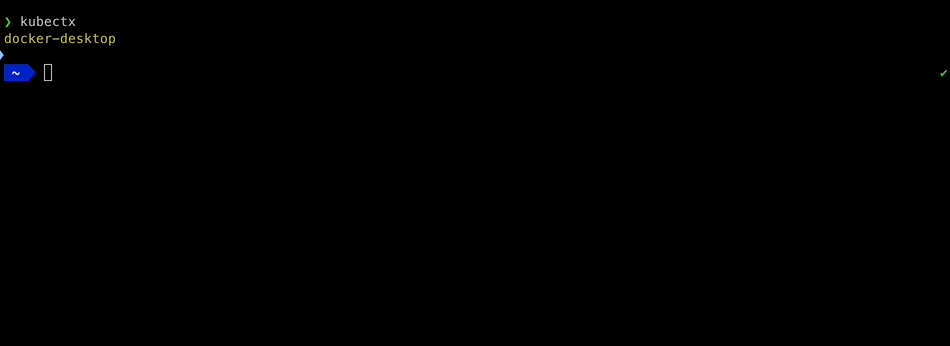

pulumi-esc-kubectl

In this post, we will create a Kubernetes cluster, deploy an application to the created cluster, and then use kubectl to check on the deployed application. Pulumi gives you great flexibility to factor your infrastructure into reusable parts, and we’ll do that here. With ESC, we’ll define an environment that provides access to an AWS account, and use that environment to create the cluster. Then we’ll define an environment that encapsulates the kubeconfig needed to connect to that cluster.

Create a Kubernetes Cluster

First, we create a Kubernetes cluster using the pulumi-eks component.

import * as pulumi from "@pulumi/pulumi";
import * as eks from "@pulumi/eks";

const eksCluster = new eks.Cluster("eks-cluster", {});
export const kubeconfig = eksCluster.kubeconfig;
import pulumi
import pulumi_eks as eks

eks_cluster = eks.Cluster("eks-cluster")
pulumi.export("kubeconfig", eks_cluster.kubeconfig)
import (
	"github.com/pulumi/pulumi-eks/sdk/go/eks"
	"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
)

func main() {
	pulumi.Run(func(ctx *pulumi.Context) error {
		eksCluster, err := eks.NewCluster(ctx, "eks-cluster", nil)
		if err != nil {
			return err
		}
		ctx.Export("kubeconfig", eksCluster.Kubeconfig)
		return nil
	})
}
using System.Collections.Generic;
using System.Linq;
using Pulumi;
using Eks = Pulumi.Eks;

return await Deployment.RunAsync(() =>
{
    var eksCluster = new Eks.Cluster("eks-cluster");

    return new Dictionary<string, object?>
    {
        ["kubeconfig"] = eksCluster.Kubeconfig,
    };
});
import com.pulumi.Context;
import com.pulumi.Pulumi;
import com.pulumi.eks.Cluster;

public class App {
    public static void main(String[] args) {
        Pulumi.run(App::stack);
    }

    public static void stack(Context ctx) {
        var eksCluster = new Cluster("eksCluster");

        ctx.export("kubeconfig", eksCluster.kubeconfig());
    }
}
name: eks-cluster
runtime: nodejs
description: EKS Kubernetes Cluster
resources:
  eks-cluster:
    type: eks:Cluster
outputs:
  kubeconfig: ${eks-cluster.kubeconfig}

This component includes an output value for the cluster’s kubeconfig that we can use to connect to the cluster. However, before we create the cluster, we need to configure AWS credentials so that Pulumi can deploy the requested changes. While it is possible to set this configuration directly on the stack, let’s see how it can be done with Pulumi ESC. First, we create the following ESC environment (the aws-sandbox environment):

values:
  aws:
    creds:
      fn::open::aws-login:
        oidc:
          duration: 1h
          roleArn: arn:aws:iam::0123456789:role/deploy-oidc
          sessionName: pulumi-environments-session
  environmentVariables:
    AWS_ACCESS_KEY_ID: ${aws.creds.keyId}
    AWS_SECRET_ACCESS_KEY: ${aws.creds.secretAccessKey}
    AWS_SESSION_TOKEN: ${aws.creds.sessionToken}
  pulumiConfig:
    aws:region: us-west-2

Notice that this environment uses the aws-login ESC provider to dynamically load short-lived credentials using OIDC. These credentials are then exposed as environment variables for consumers of this environment. We also set the AWS region in the pulumiConfig section to configure the region for pulumi to manage resources with the pulumi-aws provider.

To have Pulumi use this ESC environment when deploying the cluster, we set the following configuration for our stack:

environment:
  - aws-sandbox

The environment key accepts a list of ESC environments to import. When the stack is updated, pulumi automatically sets the configured environment variables and stack configuration based on the ESC environment. We run our update, and Pulumi creates our EKS cluster.

pulumi up --skip-preview
Updating (demo)

     Type                                   Name                                           Status
 +   pulumi:pulumi:Stack                    eks-cluster-demo                               created (577s)
 +   └─ eks:index:Cluster                   eks-cluster                                    created (561s)
 +      β”œβ”€ eks:index:ServiceRole            eks-cluster-eksRole                            created (2s)
 +      β”‚  β”œβ”€ aws:iam:Role                  eks-cluster-eksRole-role                       created (0.78s)
 +      β”‚  └─ aws:iam:RolePolicyAttachment  eks-cluster-eksRole-4b490823                   created (0.44s)
 +      β”œβ”€ eks:index:ServiceRole            eks-cluster-instanceRole                       created (3s)
 +      β”‚  β”œβ”€ aws:iam:Role                  eks-cluster-instanceRole-role                  created (0.85s)
 +      β”‚  β”œβ”€ aws:iam:RolePolicyAttachment  eks-cluster-instanceRole-3eb088f2              created (0.46s)
 +      β”‚  β”œβ”€ aws:iam:RolePolicyAttachment  eks-cluster-instanceRole-03516f97              created (0.59s)
 +      β”‚  └─ aws:iam:RolePolicyAttachment  eks-cluster-instanceRole-e1b295bd              created (0.75s)
 +      β”œβ”€ eks:index:RandomSuffix           eks-cluster-cfnStackName                       created (0.49s)
 +      β”œβ”€ aws:ec2:SecurityGroup            eks-cluster-eksClusterSecurityGroup            created (1s)
 +      β”œβ”€ aws:iam:InstanceProfile          eks-cluster-instanceProfile                    created (0.48s)
 +      β”œβ”€ aws:eks:Cluster                  eks-cluster-eksCluster                         created (441s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksClusterInternetEgressRule       created (0.81s)
 +      β”œβ”€ aws:ec2:SecurityGroup            eks-cluster-nodeSecurityGroup                  created (1s)
 +      β”œβ”€ pulumi:providers:kubernetes      eks-cluster-eks-k8s                            created (0.14s)
 +      β”œβ”€ eks:index:VpcCni                 eks-cluster-vpc-cni                            created (2s)
 +      β”œβ”€ kubernetes:core/v1:ConfigMap     eks-cluster-nodeAccess                         created (0.60s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksExtApiServerClusterIngressRule  created (1s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksClusterIngressRule              created (1s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksNodeInternetEgressRule          created (1s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksNodeClusterIngressRule          created (2s)
 +      β”œβ”€ aws:ec2:SecurityGroupRule        eks-cluster-eksNodeIngressRule                 created (2s)
 +      β”œβ”€ aws:ec2:LaunchConfiguration      eks-cluster-nodeLaunchConfiguration            created (1s)
 +      β”œβ”€ aws:cloudformation:Stack         eks-cluster-nodes                              created (108s)
 +      └─ pulumi:providers:kubernetes      eks-cluster-provider                           created (0.12s)

Outputs:
    kubeconfig: {
        apiVersion     : "v1"
        clusters       : [
            [0]: {
                cluster: {
                    certificate-authority-data: "<redacted>"
                    server                    : "https://FB9978041F7B72B227B7E95F076822E4.gr7.us-west-2.eks.amazonaws.com"
                }
                name   : "kubernetes"
            }
        ]
        contexts       : [
            [0]: {
                context: {
                    cluster: "kubernetes"
                    user   : "aws"
                }
                name   : "aws"
            }
        ]
        current-context: "aws"
        kind           : "Config"
        users          : [
            [0]: {
                name: "aws"
                user: {
                    exec: {
                        apiVersion: "client.authentication.k8s.io/v1beta1"
                        args      : [
                            [0]: "eks"
                            [1]: "get-token"
                            [2]: "--cluster-name"
                            [3]: "eks-cluster-eksCluster-1268ff9"
                        ]
                        command   : "aws"
                        env       : [
                            [0]: {
                                name : "KUBERNETES_EXEC_INFO"
                                value: (json) {
                                    apiVersion: "client.authentication.k8s.io/v1beta1"
                                }

                            }
                        ]
                    }
                }
            }
        ]
    }

Resources:
    + 27 created

Duration: 9m38s

Connect to the cluster

Let’s create another Pulumi ESC environment called eks-sandbox to encapsulate the configuration needed to connect to the EKS cluster.

imports:
  - aws-sandbox
values:
  stacks:
    fn::open::pulumi-stacks:
      stacks:
        eks-cluster:
          stack: eks-cluster/demo
  kubeconfig: {'fn::toJSON': "${stacks.eks-cluster.kubeconfig}"}
  pulumiConfig:
    kubernetes:kubeconfig: ${kubeconfig}
  files:
    KUBECONFIG: ${kubeconfig}

This ESC environment uses another ESC provider to reference outputs from Pulumi stacks in your organization. In this case, we specify that we want to read outputs from the eks-cluster/demo stack, and then export the kubeconfig output from that stack as pulumiConfig and files. As we saw on the cluster environment, pulumiConfig sets configuration for Pulumi providers, so this allows us to run our stack and deploy the application to our cluster.

We import the aws-sandbox environment defined earlier, to provide the user with AWS credentials to authenticate to the EKS cluster.

Since the eks-sandbox environment defines a KUBECONFIG variable that kubectl understands, we can run kubectl in the context of this environment like this:

$ pulumi env run eks-sandbox -- kubectl cluster-info

Kubernetes control plane is running at https://2F3303BF9E03F8D61099AAB5ED6F31A4.gr7.us-west-2.eks.amazonaws.com
CoreDNS is running at https://2F3303BF9E03F8D61099AAB5ED6F31A4.gr7.us-west-2.eks.amazonaws.com/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

Deploy an application to the cluster

Now, we want to deploy an application to our new EKS cluster. While we could have included this in the same stack as the cluster, it is generally better to follow the separation of concerns principle, and manage applications separately from the underlying infrastructure. To achieve this goal, we create a new application stack with the following program:

import * as pulumi from "@pulumi/pulumi";
import * as kubernetes from "@pulumi/kubernetes";

const nginxDeployment = new kubernetes.apps.v1.Deployment("nginx-deployment", {
    metadata: {
        name: "nginx",
        labels: {
            app: "nginx",
        },
    },
    spec: {
        replicas: 3,
        selector: {
            matchLabels: {
                app: "nginx",
            },
        },
        template: {
            metadata: {
                labels: {
                    app: "nginx",
                },
            },
            spec: {
                containers: [{
                    name: "nginx",
                    image: "nginx",
                    ports: [{
                        containerPort: 80,
                    }],
                }],
            },
        },
    },
});
const nginxService = new kubernetes.core.v1.Service("nginx-service", {
    metadata: {
        name: "nginx",
    },
    spec: {
        type: "LoadBalancer",
        selector: {
            app: "nginx",
        },
        ports: [{
            protocol: "TCP",
            port: 80,
        }],
    },
});
import pulumi
import pulumi_kubernetes as kubernetes

nginx_deployment = kubernetes.apps.v1.Deployment("nginx-deployment",
    metadata=kubernetes.meta.v1.ObjectMetaArgs(
        name="nginx",
        labels={
            "app": "nginx",
        },
    ),
    spec=kubernetes.apps.v1.DeploymentSpecArgs(
        replicas=3,
        selector=kubernetes.meta.v1.LabelSelectorArgs(
            match_labels={
                "app": "nginx",
            },
        ),
        template=kubernetes.core.v1.PodTemplateSpecArgs(
            metadata=kubernetes.meta.v1.ObjectMetaArgs(
                labels={
                    "app": "nginx",
                },
            ),
            spec=kubernetes.core.v1.PodSpecArgs(
                containers=[kubernetes.core.v1.ContainerArgs(
                    name="nginx",
                    image="nginx",
                    ports=[kubernetes.core.v1.ContainerPortArgs(
                        container_port=80,
                    )],
                )],
            ),
        ),
    ))
nginx_service = kubernetes.core.v1.Service("nginx-service",
    metadata=kubernetes.meta.v1.ObjectMetaArgs(
        name="nginx",
    ),
    spec=kubernetes.core.v1.ServiceSpecArgs(
        type="LoadBalancer",
        selector={
            "app": "nginx",
        },
        ports=[kubernetes.core.v1.ServicePortArgs(
            protocol="TCP",
            port=80,
        )],
    ))
import (
	appsv1 "github.com/pulumi/pulumi-kubernetes/sdk/v4/go/kubernetes/apps/v1"
	corev1 "github.com/pulumi/pulumi-kubernetes/sdk/v4/go/kubernetes/core/v1"
	metav1 "github.com/pulumi/pulumi-kubernetes/sdk/v4/go/kubernetes/meta/v1"
	"github.com/pulumi/pulumi/sdk/v3/go/pulumi"
)

func main() {
	pulumi.Run(func(ctx *pulumi.Context) error {
		_, err := appsv1.NewDeployment(ctx, "nginx-deployment", &appsv1.DeploymentArgs{
			Metadata: &metav1.ObjectMetaArgs{
				Name: pulumi.String("nginx"),
				Labels: pulumi.StringMap{
					"app": pulumi.String("nginx"),
				},
			},
			Spec: &appsv1.DeploymentSpecArgs{
				Replicas: pulumi.Int(3),
				Selector: &metav1.LabelSelectorArgs{
					MatchLabels: pulumi.StringMap{
						"app": pulumi.String("nginx"),
					},
				},
				Template: &corev1.PodTemplateSpecArgs{
					Metadata: &metav1.ObjectMetaArgs{
						Labels: pulumi.StringMap{
							"app": pulumi.String("nginx"),
						},
					},
					Spec: &corev1.PodSpecArgs{
						Containers: corev1.ContainerArray{
							&corev1.ContainerArgs{
								Name:  pulumi.String("nginx"),
								Image: pulumi.String("nginx"),
								Ports: corev1.ContainerPortArray{
									&corev1.ContainerPortArgs{
										ContainerPort: pulumi.Int(80),
									},
								},
							},
						},
					},
				},
			},
		})
		if err != nil {
			return err
		}
		_, err = corev1.NewService(ctx, "nginx-service", &corev1.ServiceArgs{
			Metadata: &metav1.ObjectMetaArgs{
				Name: pulumi.String("nginx"),
			},
			Spec: &corev1.ServiceSpecArgs{
				Type: pulumi.String("LoadBalancer"),
				Selector: pulumi.StringMap{
					"app": pulumi.String("nginx"),
				},
				Ports: corev1.ServicePortArray{
					&corev1.ServicePortArgs{
						Protocol: pulumi.String("TCP"),
						Port:     pulumi.Int(80),
					},
				},
			},
		})
		if err != nil {
			return err
		}
		return nil
	})
}
using System.Collections.Generic;
using System.Linq;
using Pulumi;
using Kubernetes = Pulumi.Kubernetes;

return await Deployment.RunAsync(() =>
{
    var nginxDeployment = new Kubernetes.Apps.V1.Deployment("nginx-deployment", new()
    {
        Metadata = new Kubernetes.Types.Inputs.Meta.V1.ObjectMetaArgs
        {
            Name = "nginx",
            Labels =
            {
                { "app", "nginx" },
            },
        },
        Spec = new Kubernetes.Types.Inputs.Apps.V1.DeploymentSpecArgs
        {
            Replicas = 3,
            Selector = new Kubernetes.Types.Inputs.Meta.V1.LabelSelectorArgs
            {
                MatchLabels =
                {
                    { "app", "nginx" },
                },
            },
            Template = new Kubernetes.Types.Inputs.Core.V1.PodTemplateSpecArgs
            {
                Metadata = new Kubernetes.Types.Inputs.Meta.V1.ObjectMetaArgs
                {
                    Labels =
                    {
                        { "app", "nginx" },
                    },
                },
                Spec = new Kubernetes.Types.Inputs.Core.V1.PodSpecArgs
                {
                    Containers = new[]
                    {
                        new Kubernetes.Types.Inputs.Core.V1.ContainerArgs
                        {
                            Name = "nginx",
                            Image = "nginx",
                            Ports = new[]
                            {
                                new Kubernetes.Types.Inputs.Core.V1.ContainerPortArgs
                                {
                                    ContainerPortValue = 80,
                                },
                            },
                        },
                    },
                },
            },
        },
    });

    var nginxService = new Kubernetes.Core.V1.Service("nginx-service", new()
    {
        Metadata = new Kubernetes.Types.Inputs.Meta.V1.ObjectMetaArgs
        {
            Name = "nginx",
        },
        Spec = new Kubernetes.Types.Inputs.Core.V1.ServiceSpecArgs
        {
            Type = "LoadBalancer",
            Selector =
            {
                { "app", "nginx" },
            },
            Ports = new[]
            {
                new Kubernetes.Types.Inputs.Core.V1.ServicePortArgs
                {
                    Protocol = "TCP",
                    Port = 80,
                },
            },
        },
    });

});
import java.security.Provider.Service;
import java.util.Map;

import javax.naming.Context;

import com.pulumi.Pulumi;
import com.pulumi.kubernetes.apps_v1.Deployment;
import com.pulumi.kubernetes.apps_v1.DeploymentArgs;
import com.pulumi.kubernetes.apps_v1.inputs.DeploymentSpecArgs;
import com.pulumi.kubernetes.core_v1.ServiceArgs;
import com.pulumi.kubernetes.core_v1.inputs.PodSpecArgs;
import com.pulumi.kubernetes.core_v1.inputs.PodTemplateSpecArgs;
import com.pulumi.kubernetes.core_v1.inputs.ServiceSpecArgs;
import com.pulumi.kubernetes.meta_v1.inputs.LabelSelectorArgs;
import com.pulumi.kubernetes.meta_v1.inputs.ObjectMetaArgs;

public class App {
    public static void main(String[] args) {
        Pulumi.run(App::stack);
    }

    public static void stack(Context ctx) {
        var nginxDeployment = new Deployment("nginxDeployment", DeploymentArgs.builder()
            .metadata(ObjectMetaArgs.builder()
                .name("nginx")
                .labels(Map.of("app", "nginx"))
                .build())
            .spec(DeploymentSpecArgs.builder()
                .replicas(3)
                .selector(LabelSelectorArgs.builder()
                    .matchLabels(Map.of("app", "nginx"))
                    .build())
                .template(PodTemplateSpecArgs.builder()
                    .metadata(ObjectMetaArgs.builder()
                        .labels(Map.of("app", "nginx"))
                        .build())
                    .spec(PodSpecArgs.builder()
                        .containers(ContainerArgs.builder()
                            .name("nginx")
                            .image("nginx")
                            .ports(ContainerPortArgs.builder()
                                .containerPort(80)
                                .build())
                            .build())
                        .build())
                    .build())
                .build())
            .build());

        var nginxService = new Service("nginxService", ServiceArgs.builder()
            .metadata(ObjectMetaArgs.builder()
                .name("nginx")
                .build())
            .spec(ServiceSpecArgs.builder()
                .type("LoadBalancer")
                .selector(Map.of("app", "nginx"))
                .ports(ServicePortArgs.builder()
                    .protocol("TCP")
                    .port(80)
                    .build())
                .build())
            .build());

    }
}
name: yaml-example
runtime: yaml
description: Deployment + Service
resources:
  nginx-deployment:
    type: kubernetes:apps/v1:Deployment
    properties:
      metadata:
        name: nginx
        labels:
          app: nginx
      spec:
        replicas: 3
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
          spec:
            containers:
            - name: nginx
              image: "nginx"
              ports:
              - containerPort: 80
  nginx-service:
    type: kubernetes:core/v1:Service
    properties:
      metadata:
        name: nginx
      spec:
        type: LoadBalancer
        selector:
          app: nginx
        ports:
        - protocol: TCP
          port: 80

We need to set some configuration before we deploy this stack. In this case, we need a kubeconfig to allow the pulumi-kubernetes provider to connect to our EKS cluster.

We import the eks-sandbox environment with the following stack configuration:

environment:
  - eks-sandbox

Now we update our stack, and see that our application gets deployed to the cluster, without needing to manually configure any credentials – ESC automatically injects them for us!

pulumi up --skip-preview
Updating (demo)

     Type                              Name               Status
 +   pulumi:pulumi:Stack               yaml-example-demo  created (0.31s)
 +   β”œβ”€ kubernetes:core/v1:Service     nginx-service      created (10s)
 +   └─ kubernetes:apps/v1:Deployment  nginx-deployment   created (2s)

Resources:
    + 3 created

Duration: 13s

Now that the application is deployed, let’s take a look using kubectl:

$ esc run eks-sandbox -- kubectl get deployments

NAME    READY   UP-TO-DATE   AVAILABLE   AGE
nginx   3/3     3            3           103s
ESC environments can be used with the pulumi CLI using the pulumi env command, or with the new standalone esc CLI.

Export Files

As we see in the ESC environment definition named eks-sandbox, there’s a files section (under values) for defining values that are automatically exported as temporary files when you run the environment. You can use this feature to generate configuration files to support your preferred tools. Pulumi exports each key-value pair as a temporary file containing the actual value, and an associated environment variable pointing to it.

Earlier we exported an environment variable named KUBECONFIG with a dynamic value based on a stack output. Here’s a similar example with the configuration declared statically:

values:
  files:
    KUBECONFIG: |
      apiVersion: v1
      kind: Config
      clusters:
      - cluster:
          server: https://127.0.0.1:6443
        name: docker-desktop

Conclusion

Pulumi ESC makes it easier than ever to tame infrastructure complexity. For this demo, we created two reusable ESC environments to configure AWS and Kubernetes credentials, created an EKS cluster, deployed a load-balanced application to the cluster, and configured our local toolchain to connect to the cluster. Since we factored the shared configuration into ESC environments, it is easy to extend this example to deploy additional AWS or Kubernetes resources. Pulumi ESC supports dynamic credentials using OIDC across AWS, Azure, and Google Cloud, with additional providers on the roadmap. Check out the following links to learn more about Pulumi ESC today!
