Introducing Pulumi Query for Kubernetes

We often need answers to simple questions about Kubernetes resources. Questions like:

  • How many distinct versions of MySQL are running in my cluster?
  • Which Pods are scheduled on nodes with high memory pressure?
  • Which Pods are publicly exposed to the internet via a load-balanced Service?

Each of these questions would normally be answered by invoking kubectl multiple times to list resources of each type, and manually parsing the output to join it together into a single report.

Examples like these motivated us to build Pulumi Query for Kubernetes, which aims to greatly simplify scenarios like the ones mentioned above.

Pulumi Query is a tool and SDK for querying live Kubernetes resources. Pulumi Query supports both batch and streaming query modes. Batch queries run to completion, generating a fixed report. Streaming queries watch Kubernetes resources in real-time and take action when specific events occur. For example:

  • Post a slack notification when we run out of disk space.
  • Page someone when a rollout fails.

In this post, we’ll look at both batch and streaming query modes by showing examples of each. The Pulumi Query for Kubernetes SDK also contains a set of example queries and how to run them.

Batch queries

A simple example is a query program that finds all distinct versions of MySQL running in the default namespace of the active cluster of your $KUBECONFIG file.

The core primitive of batch queries is list. In this case, list("v1", "Pod") returns list of all Pods in the default namespace. The rest of the query “flattens” the list of Pods into a list of all container images, filters out all images that don’t contain the string “mysql”, and filters that to only distinct image names.

import * as kq from "@pulumi/query-kubernetes";

// Find all distinct versions of MySQL running in your cluster.
const mySqlVersions = kq
    .list("v1", "Pod")
    .flatMap(pod => pod.spec.containers)
    .map(container => container.image)
    .filter(imageName => imageName.includes("mysql"))
    .distinct();

mySqlVersions.forEach(console.log);

Query programs are run via the pulumi query command. Note that this feature is in beta, so to run it, you will need to prepend the command with the beta flag: PULUMI_EXPERIMENTAL=true pulumi query. The output looks like the following:

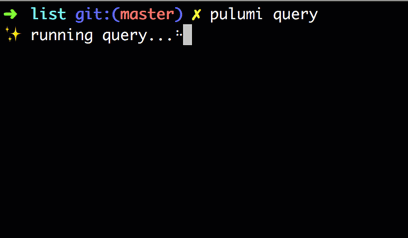

Querying a list of resources

Batch query mode supports complex join operations via the join and groupJoin methods. This allows us to ask complex questions about how resources relate to each other, such as “find all Pods that reference some Secret.” For more examples, check out the examples in the SDK repository!

Streaming queries

The streaming query SDK continuously observes changes to any set of Kubernetes resources and takes action as a result.

The core primitive of the streaming SDK is watch. In the following example, we use watch to observe all Events related to a Deployment, which we then print to the console. Unlike list, which produces a set of live Kubernetes resources, watch publishes a stream of resource updates. Users get notified if a resource is ADDED, MODIFIED, or UPDATED.

Here is a simple example that watches for Events related to a deployment called alexbot

import * as kq from "@pulumi/query-kubernetes";

for await (const e of kq.watch("v1", "Event")) {
   const { apiVersion, kind, name } = e.object.involvedObject;
   if (
       apiVersion === "apps/v1" &&
       kind === "Deployment" &&
       name === "alexbot"
   ) {
       const { type, reason, message } = e.object;
       console.log(`${type} [${reason}] ${message}`);
   }
}

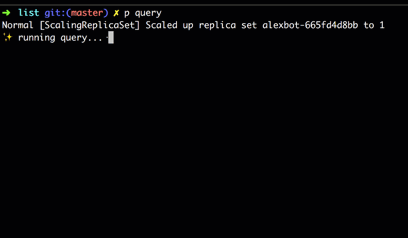

When run, we can see in real-time as the Deployment controller scales up the new ReplicaSet and scales down the old one.

Querying a stream of resources

For streaming queries over multiple resources, we expose a ResourceSet, which is a convenience data structure that simplifies the code. ResourceSet observes a sequence of resource updates published by watch, and uses those updates to keep track of which resources currently exist. It exposes an onUpdate function, which will run when this set is updated; i.e., whenever a resource is added, modified, or deleted from the set entirely.

In this case, when onUpdate is called, we run a query that filters the set of events down to those specifically having to do with a Deployment called alexbot. We can rewrite the previous query program to use ResourceSet in the following way:

import * as kq from "@pulumi/query-kubernetes";

new kq.ResourceSet([kq.watch("v1", "Event")]).onUpdate(([events]) => {
   events.filter(e => {
       const { apiVersion, kind, name } = e.involvedObject;
       return (
           apiVersion === "apps/v1" &&
           kind === "Deployment" &&
           name === "alexbot"
       );
   }).forEach(e => {
       const { type, reason, message } = e;
       console.log(`${type} [${reason}] ${message}`);
   });
});

Running this code with pulumi query results in an infinite stream of events telling us about this Deployment, i.e. when it’s rolling out, when it’s scaling down a ReplicaSet, and so on.

Conclusion

Pulumi Query provides powerful primitives for introspecting and reacting to changes in the state of Kubernetes resources. These primitives make it simpler to build tools that facilitate observability and helps to understand Kubernetes applications and to integrate event-based systems in response to them.

One of our hopes for Pulumi Query is that by building these simple integrations that it will lead to a groundswell of tooling that makes it easier to operate Kubernetes clusters by automating away tedious tasks that would normally be scripted. With this toolkit, teams can write linters, pre- and post-flight deployment checks, and to improve governance and security operations with minimal effort.
