Mapbox IOT-as-code with Pulumi Crosswalk for AWS

Guest Author: Chris Toomey, Solution Architect Lead @ Mapbox

With 8 billion+ connected IoT devices and 2 billion GPS-equipped smartphones already online, logistics businesses are tracking assets at every step in the supply chain. At this scale and complexity, it is imperative to have a flexible way to ingest, process, and act upon this data, without sacrificing security or best practices.

To meet this need, Mapbox has created an Asset Tracking Solution that uses Pulumi’s open source JavaScript libraries (AWS, AWSX) available with multi-language support with Pulumi Crosswalk for AWS. Pulumi Crosswalk for AWS is an open source framework that streamlines creation, deployment and management of AWS services with built-in AWS Best Practices and minimal lines of code in common programming languages.

In this blog, we will show snippets of the Javascript code that embraces the power of Pulumi to program AWS service APIs to create the Mapbox solution. To see the full architecture in action with a live bike race across America, please refer to this webinar recorded on June 13th 2019 and the Mapbox asset tracking solution. Also refer to this blog of the Race across America showcased live during the webinar tomorrow.

Prerequisites: Install Pulumi; Install Node.js and Setup AWS

The diagram represents how Mapbox’s solution design on AWS services is built with Pulumi AWS and AWSX libraries in Javascript. Data is ingested in the Asset tracking IOT solution with a REST API. Mapbox uses its stream processor to perform enrichments such as geofencing, traffic-aware ETA calculations, and high-prevision elevation. This data, exposed by the API is backed by a high performance database (DynamoDB) to enable visualization in realtime on the map client.

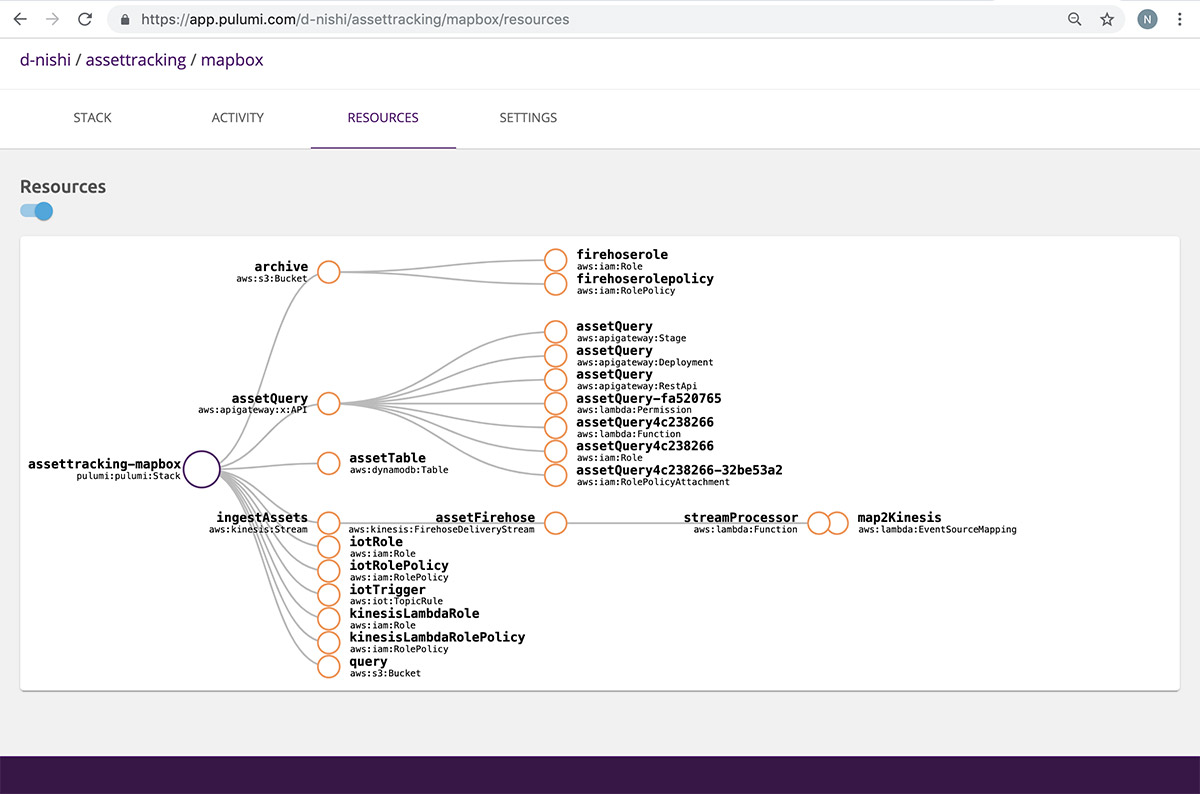

The fun part – Pulumi Service console helps you map your cloud architecture shown above as a connected set of DAG resources so you need not remember what you deployed as your cloud environments scale:

Lets now work through the solution flow with some sample snippets of code. To get access to the complete piece of code, please connect with Mapbox solution team here and Pulumi team here. We will be happy to help you sample test this solution on AWS!

STEP 1: Create a Pulumi project using an AWS JavaScript template

$ brew install pulumi/tap/pulumi
$ mkdir asset-tracking && cd asset-tracking
$ pulumi new aws-javascript
$ yarn install
$ ls
Pulumi.dev.yaml    Pulumi.yaml       index.js   node_modules    package-lock.json     package.json

STEP 2: Create the ingestion REST API with AWS Services

To visualize data the system has to accept large volumes of data from multiple sources into the rest of the system. Mapbox uses Pulumi’s AWS & AWSX libraries to build an IOT ingestion rule and forwards it to Kinesis streams. A sample index.js looks like this:

"use strict";
const pulumi = require("@pulumi/pulumi");
const aws = require("@pulumi/aws");
const awsx = require("@pulumi/awsx");

// Create Kinesis stream for ingestion
const ingestStream = new aws.kinesis.Stream("ingestAssets", {
  shardCount: 1,
  retentionPeriod: 72
});

// Create IoT Rule to push into Kinesis stream
const iotRole = new aws.iam.Role("iotRole", {
  assumeRolePolicy: JSON.stringify({
    Version: "2012-10-17",
    Statement: [
      {
        Effect: "Allow",
        Principal: {
          Service: "iot.amazonaws.com"
        },
        Action: "sts:AssumeRole"
      }
    ]
  })
});

const iotRolePolicy = new aws.iam.RolePolicy("iotRolePolicy", {
  policy: pulumi.interpolate`{
    "Version": "2012-10-17",
    "Statement": [
      {
          "Effect": "Allow",
          "Action": [
              "kinesis:*"
          ],
          "Resource": "${ingestStream.arn}"
      }
    ]
  }`,
  role: iotRole.id
});

const iotRule = new aws.iot.TopicRule("iotTrigger", {
  description: "Pass from IoT Core to Asset Tracking",
  name: "iotAssetIngest",
  enabled: true,
  kinesis: {
    partitionKey: "id",
    roleArn: iotRole.arn,
    streamName: ingestStream.name
  },
  sql: "SELECT * FROM 'topic'",
  sqlVersion: "2015-10-08"
});

Kinesis streams are used to ingest data into multiple AWS services defined as IOT rules, Firehose and Lambda functions. Each ingest stream has the right IAM role and policy to allow Kinesis to send the data into these AWS services.

The code above does not shown the Javascript code for Lambda functions used by Mapbox streamprocessor and Firehose all created with Pulumi AWS and AWSX libraries.

To get this piece of code, please connect with Mapbox solution team here and Pulumi team here.

STEP 3: Create a consumption API for the map client to consume from a data source

Once, data is flowing through the system we build another API to query DynamoDB, transform that data, and provide it to our mapping client in geojson. With Pulumi AWSX, we create a APIGateway endpoint API that can query this data out of DynamoDB. The sample code in index.js will look like this:

To get this piece of code, please connect with Mapbox solution team here and Pulumi team here.

// Create DynamoDB Table
const assetTable = new aws.dynamodb.Table("assetTable", {
  attributes: [
    {
      name: "id",
      type: "S"
    },
    {
      name: "ts",
      type: "N"
    }
  ],
  hashKey: "id",
  rangeKey: "ts",
  ttl: {
    attributeName: "expiration",
    enabled: true
  },
    billingMode: "PAY_PER_REQUEST"
  });

// Create API to read DynamoDB
const endpoint = new awsx.apigateway.API("assetQuery", {
  routes: [
    {
      path: "/",
      method: "GET",
      eventHandler: (request, ctx, cb) => {
        const AWS = require("aws-sdk");
        const ddb = new AWS.DynamoDB.DocumentClient({
          apiVersion: "2012-10-08"
        });
        const tableName = assetTable.name.value;
        const params = {
          TableName: tableName
        };
        ddb.scan(params, (err, data) => {
          const features = data.Items.map(item => {
            const point = turf.point([item.longitude, item.latitude], {
              id: item.id,
              speed: item.speed
            });
            return point;
          });
          const featureCollection = turf.featureCollection(features);
          cb(undefined, {
            statusCode: 200,
            body: Buffer.from(
              JSON.stringify(featureCollection),
              "utf8"
            ).toString("base64"),
            isBase64Encoded: true,
            headers: { "content-type": "application/json" }
          });
        });
      }
    }
  ],
  stageName: "dev"
});

Once we’ve created the API, we start defining our routes and then in-line we can define a Lambda function. It can use NPM modules and Pulumi will handle bundling all the dependencies.

This endpoint assumes we are querying Dynamo - and so we are going to use the DynamoDB Document Client. Using that straightforward scan syntax, we query the table and then start to parse our results. Since every data point has a latitude and longitude as GeoJSON, the data is transformed using Turf.js before sending to the client. Even more beautiful is how Pulumi handles all the heavy lifting of packaging, deploying, and giving you the endpoint to query immediately.

STEP 4: Hook up a map!

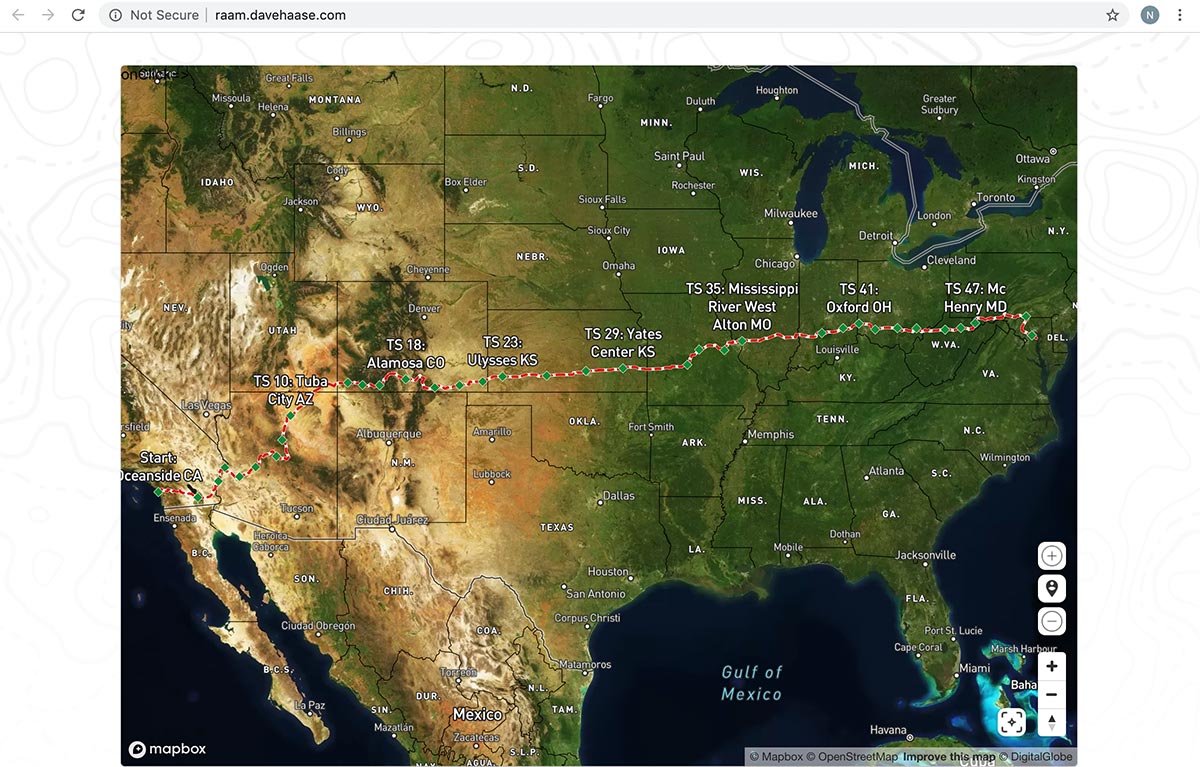

Now we have data coming and going from our Solution, we just have to hook it up to a Mapbox map. This is actually quite simple now that Pulumi has built us a REST API.

Following this example, we paste in the endpoint from Pulumi and pick our interval.
